Specs Comparison Tool

How to search for a specific model and size!
  1. Searching a model! Start typing the model name in a menu header and the menu list moves to what you have searched
  2. See the bike! Click on the image to get a bigger picture of the bike.
  3. On a phone? Swipe left to see more columns.
Spec

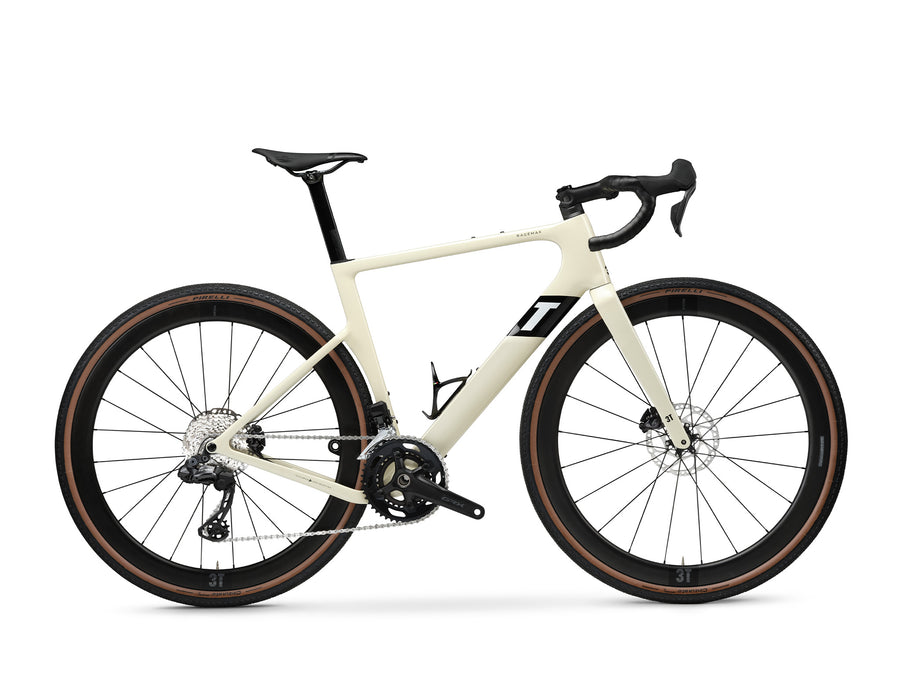

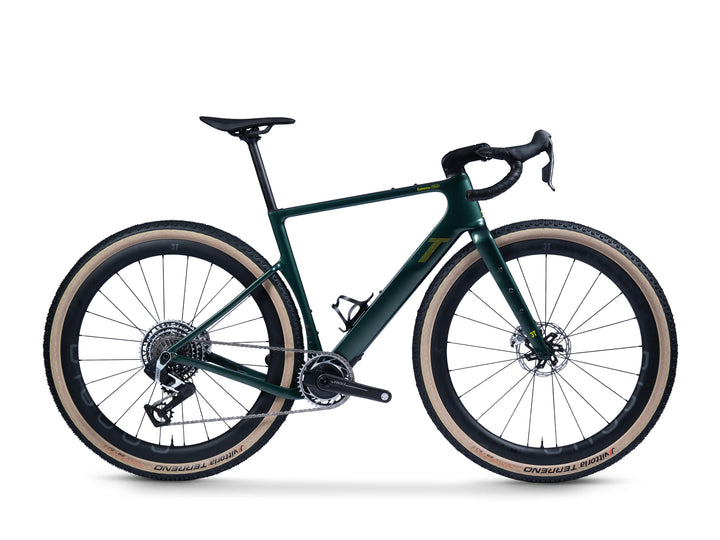

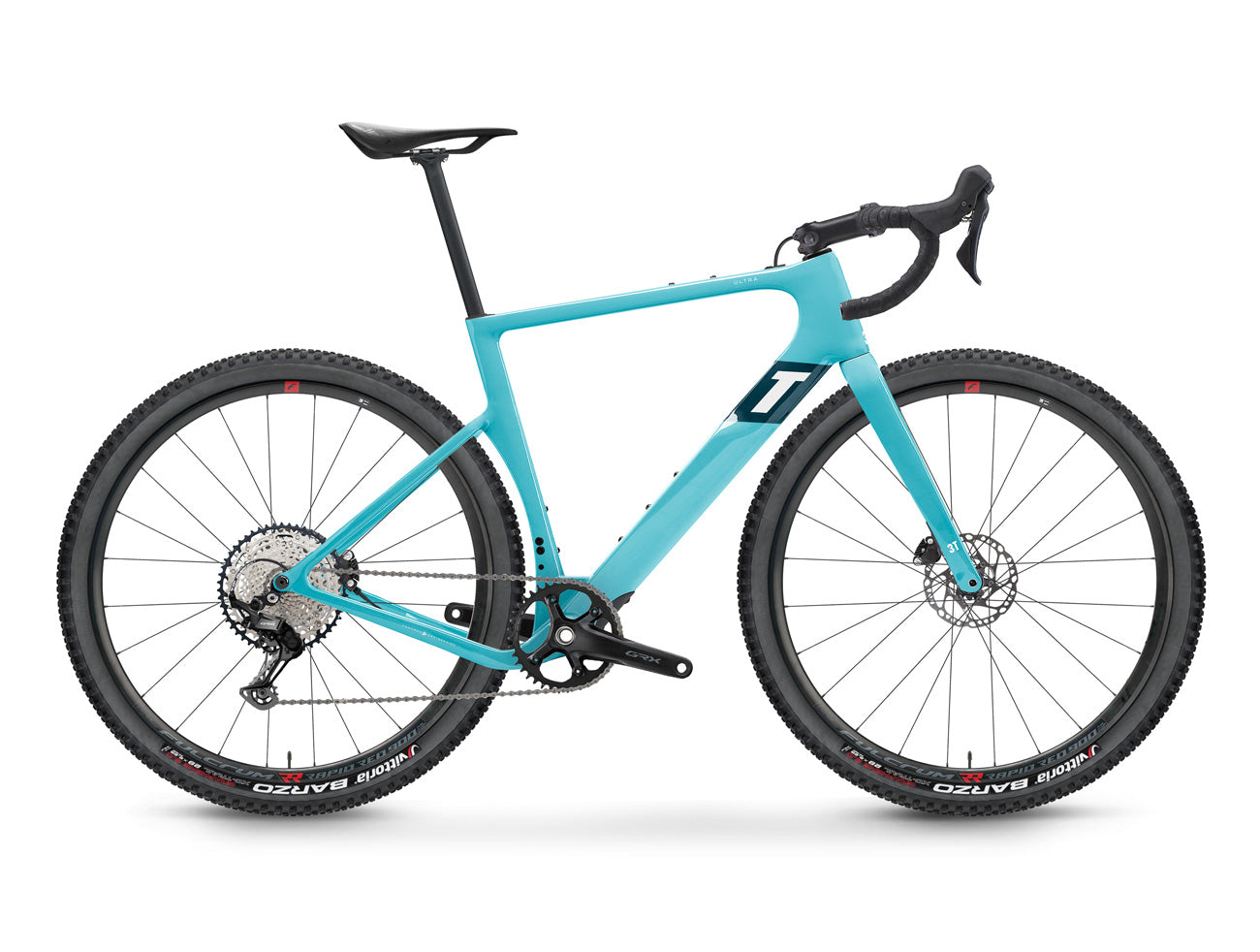

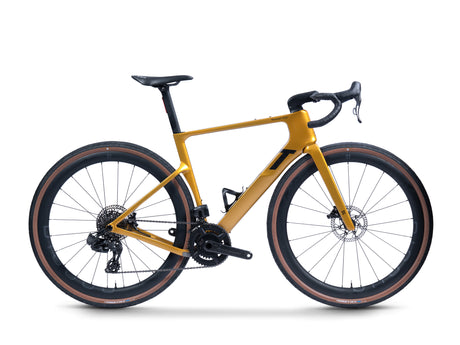

Image Bike photo Bike photo Bike photo Bike photo
Size
Estimated Rider Height 154cm - 167cm 158cm - 169cm 157cm - 168cm 147cm - 158cm
Specified Rider Height 151cm - 170cm 158cm - 170cm 157cm - 170cm 145cm - 158cm
Style racy racy racy racy
Material carbon carbon carbon carbon
Fork rigid rigid rigid rigid
Handlebar drop bar drop bar drop bar drop bar
Top Tube Effective Length 529 518 518 510
Top Tube Effective Length Est 520.028781744258 519.989489852792 519.989489852792 500.10760059458
Reach 358 364 364 351
Stack 547 544 544 520
Standover
Head Tube Angle 69.1 69.2 69.2 68.5
Seat Tube Angle 73.5 74 74 74
Chainstay Length 437 418 418 419
Front Center 614 607 607 592
Bottom Bracket Drop 79 77 77 79
Trail 60 68 68 71
Trail 45 58 69 69 73
UDH YES YES YES NO/Unknown
Tire Width Max 700c 57 47 46 46
Tire Width Max 650b 0 2.4 2.4 2.4
Suspension Correction 0 mm 0 mm 0 mm 0 mm
Axle Spacing 142 (road) 142 (road)
Stealth Dropper NO/Unknown NO/Unknown NO/Unknown YES
Seatpost Diameter 27.2 27.2
Max Chainring 1x 44 44
Dropout fixed fixed fixed fixed
Internal Storage
Base Build USD $9299 $4999 $8499 $4399
Frameset USD $6399 $3299 $6399 $2599
Location Bergamo, Italy Bergamo, Italy Bergamo, Italy Bergamo, Italy
