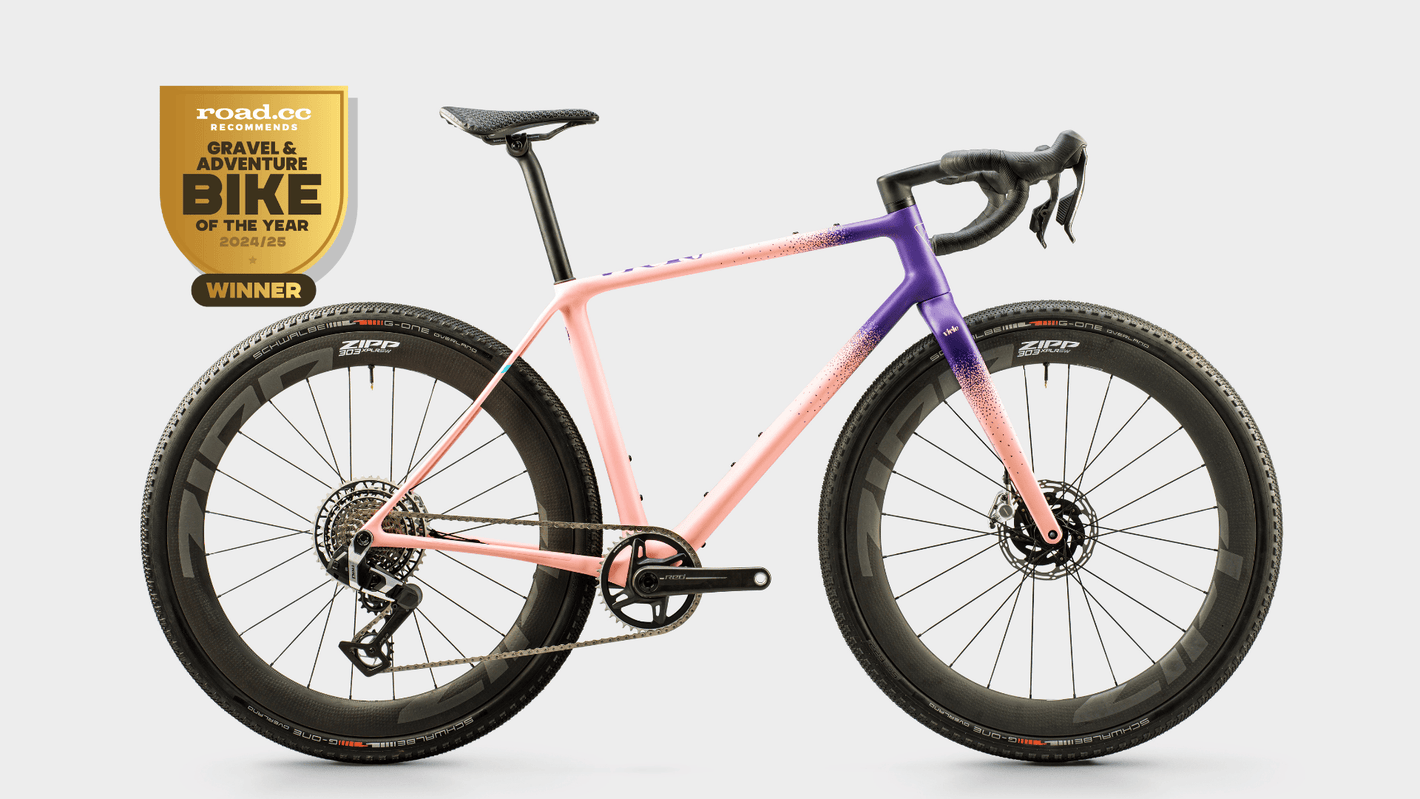

Vielo V+1 Race Edition 2025

Brand: Vielo
Model: V+1 Race Edition
Year: 2025
Category: Gravel
Similar bikes: Breezer Inversion X 2025, Felt Breed FRD UN1TD LE 2025, Turner Cyclosis Ti 2025, Surly Straggler 2025, Tritao Groont 3D 2025

Vielo V+1 Race Edition 2025

Geometry & Specs

Frame Size XS S M L XL
Estimated Rider Height 156cm - 165cm 165cm - 173cm 173cm - 182cm 182cm - 191cm 191cm - 199cm
Specified Rider Height 160cm - 166cm 166cm - 174cm 174cm - 184cm 184cm - 192cm 192cm - 201cm
Class Gravel Gravel Gravel Gravel Gravel
Style rowdy rowdy rowdy rowdy rowdy
Material carbon carbon carbon carbon carbon
Fork rigid rigid rigid rigid rigid
Handlebar drop bar drop bar drop bar drop bar drop bar
Suspension Correction 0 mm 0 mm 0 mm 0 mm 0 mm
Top Tube Effective Length 505 530 555 580 605
Effective Top Tube Length (Est) 504.5163 530.5470 554.4489 580.6106 604.3833
Reach 364.9 380.0 393.1 408.0 419.5
Stack 530.3 552.2 572.1 592.2 614.3
Standover
Head Tube Angle 70.00 70.25 70.50 70.75 71.00
Seat Tube Angle 75.25 74.75 74.25 73.75 73.25
Chainstay Length 435 435 435 435 435
Front Center 589 610 627 646 663
Bottom Bracket Drop 72.5 72.5 70.0 70.0 70.0
Trail 80 79 77 75 74
Trail 45 78 77 75 73 72
UDH YES YES YES YES YES
Tire Width Max 700c 50 50 50 50 50
Tire Width Max 650b 0 0 0 0 0
Axle Spacing 142 (road) 142 (road) 142 (road) 142 (road) 142 (road)
Stealth Dropper NO/Unknown NO/Unknown NO/Unknown NO/Unknown NO/Unknown
Seatpost Diameter 30.9 30.9 30.9 30.9 30.9
Max Chainring 1x
Dropout fixed fixed fixed fixed fixed
Internal Storage
Frame Weight 880
Base Build USD $6552 $6552 $6552 $6552 $6552
Frameset USD $3931 $3931 $3931 $3931 $3931
Location Gateshead, United Kingdom Gateshead, United Kingdom Gateshead, United Kingdom Gateshead, United Kingdom Gateshead, United Kingdom
