| Frame Size | XS | S | M | L | XL |
| Estimated Rider Height | 156cm - 164cm | 164cm - 173cm | 173cm - 180cm | 180cm - 187cm | 187cm - 196cm |
| Specified Rider Height | 155cm - 166cm | 166cm - 173cm | 173cm - 181cm | 181cm - 186cm | 186cm - 196cm |
| Class | Gravel | Gravel | Gravel | Gravel | Gravel |
| Style | rowdy | rowdy | rowdy | rowdy | rowdy |
| Material | aluminum | aluminum | aluminum | aluminum | aluminum |
| Fork | rigid | rigid | rigid | rigid | rigid |
| Handlebar | drop bar | drop bar | drop bar | drop bar | drop bar |
| Suspension Correction | 0 mm | 0 mm | 0 mm | 0 mm | 0 mm |
| Top Tube Effective Length | 530 | 540 | 560 | 575 | 590 |
| Effective Top Tube Length (Est) | 530.4742 | 540.6212 | 560.4341 | 574.7281 | 590.3183 |
| Reach | 372 | 378 | 391 | 397 | 404 |
| Stack | 535 | 549 | 572 | 600 | 629 |
| Standover | |||||
| Head Tube Angle | 70 | 70 | 70 | 70 | 70 |
| Seat Tube Angle | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Front Center | 590 | 601 | 622 | 639 | 656 |
| Bottom Bracket Drop | 67 | 67 | 67 | 67 | 67 |
| Trail | 80 | 80 | 80 | 80 | 80 |
| Trail 45 | 82 | 82 | 82 | 82 | 82 |
| UDH | YES | YES | YES | YES | YES |
| Tire Width Max 700c | 50 | 50 | 50 | 50 | 50 |
| Tire Width Max 650b | 0 | 0 | 0 | 0 | 0 |
| Axle Spacing | 142 (road) | 142 (road) | 142 (road) | 142 (road) | 142 (road) |
| Stealth Dropper | YES | YES | YES | YES | YES |
| Seatpost Diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| Max Chainring 1x | |||||
| Dropout | fixed | fixed | fixed | fixed | fixed |
| Internal Storage | |||||
| Frame Weight | 1870 | ||||
| Base Build USD | $1399 | $1399 | $1399 | $1399 | $1399 |
| Frameset USD | |||||
| Location | Lille, France | Lille, France | Lille, France | Lille, France | Lille, France |

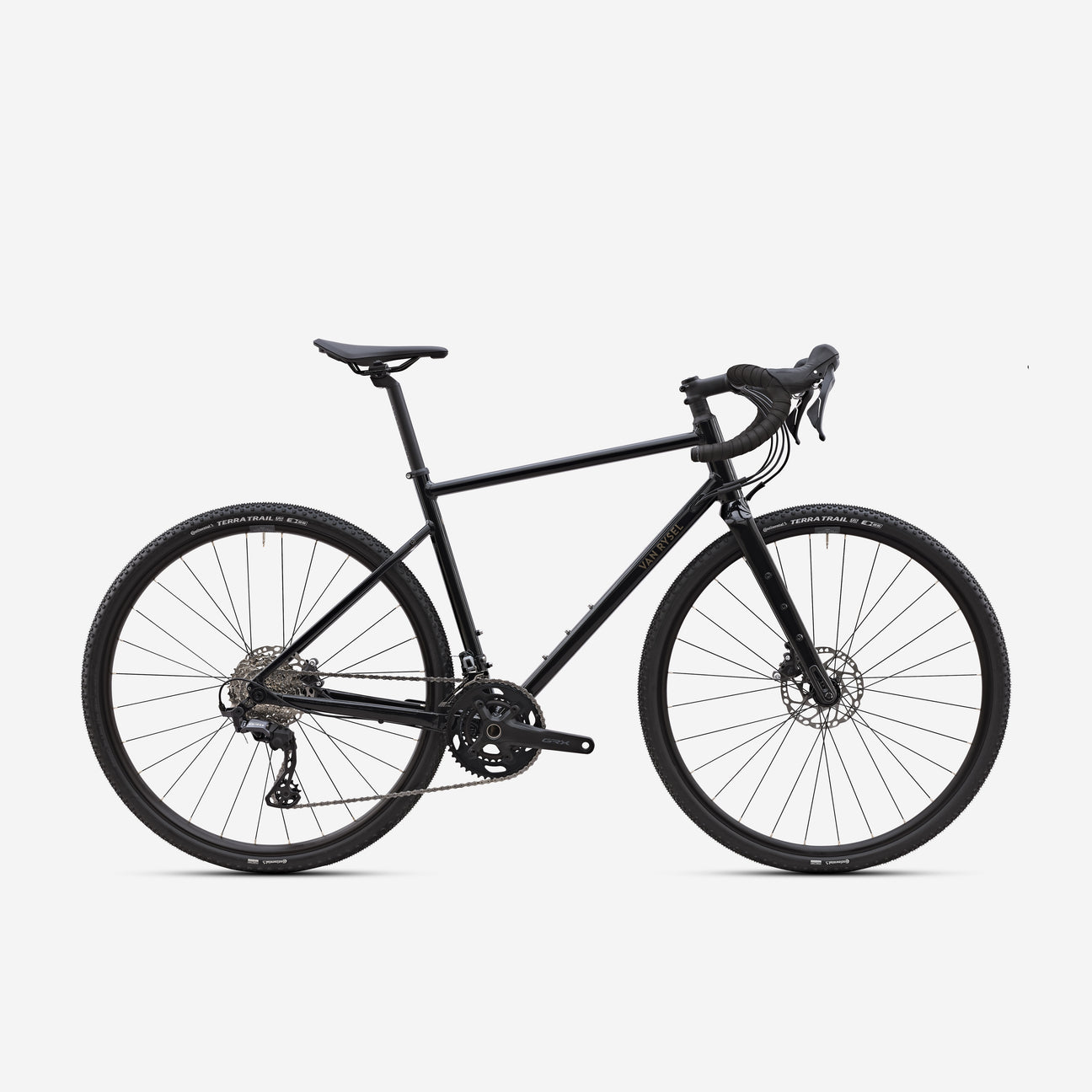

Van Rysel GRVL AF 2025
Brand: Van Rysel
Model: GRVL AF
Year: 2025
Category: Gravel
Similar bikes: Kellys Groot 2025, Loca Carbon Gravel 2025, Fiftyone Assassin long-low 2025, Kellys Soot X 2025, Kinesis Tripster ATR V3 2025
