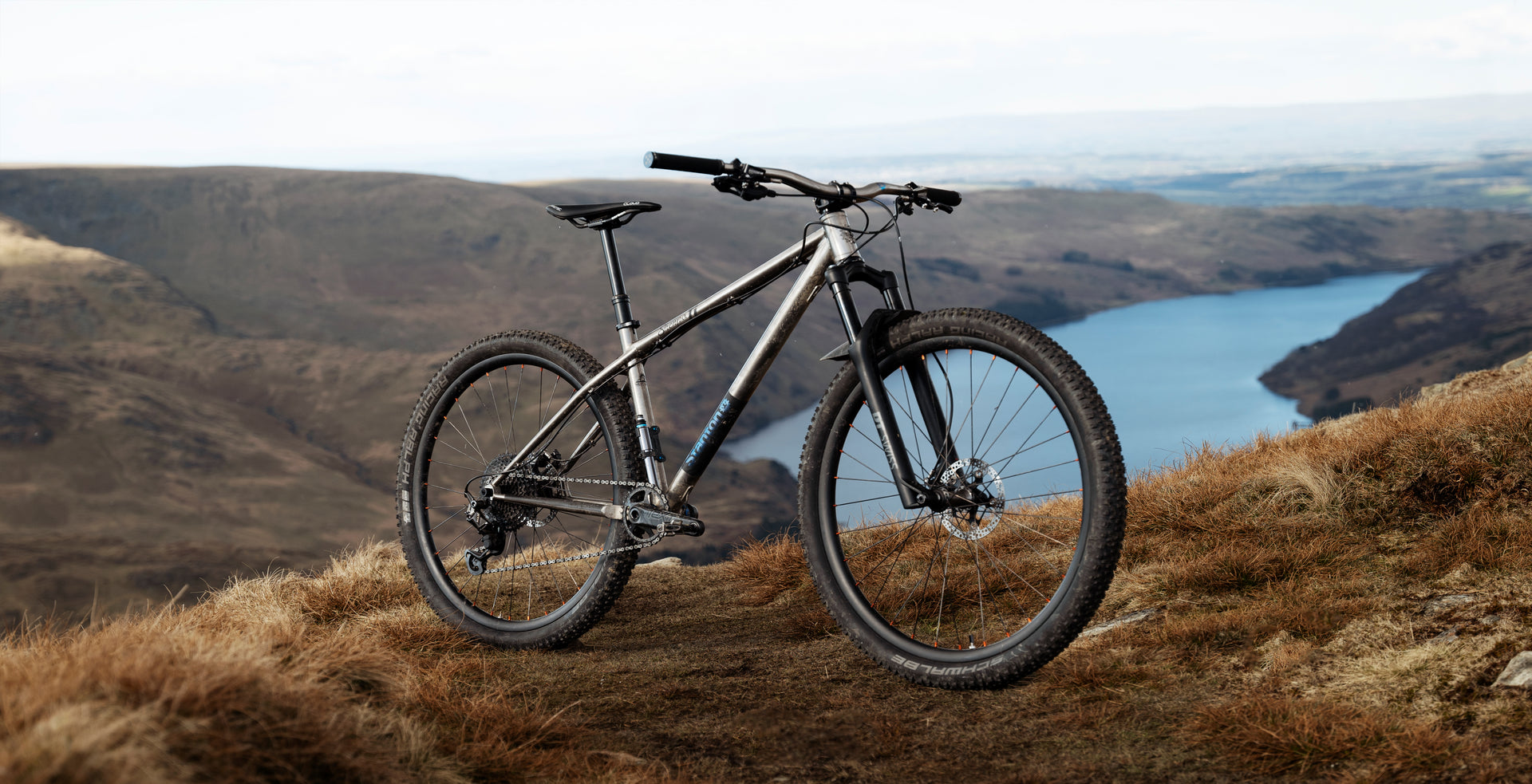

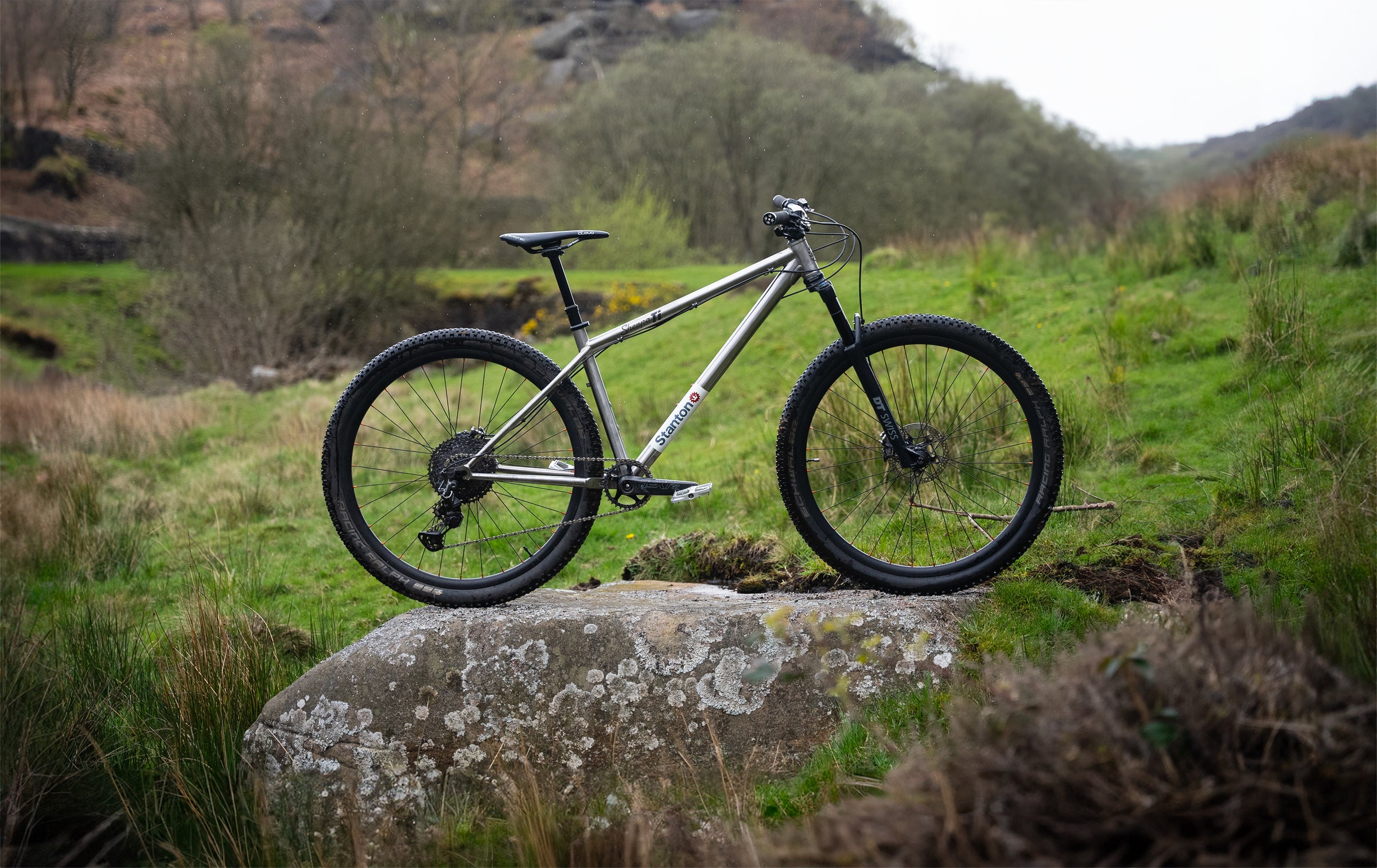

Stanton Sherpa Ti (Gen 4) 2025

Brand: Stanton
Model: Sherpa Ti (Gen 4)
Year: 2025
Category: NA
Similar bikes: Stanton Sherpa GenV 2025, Fairlight Holt 2.0 2025, Mason Macro 2025, Scott Scale Gravel 2025, Nordest Sardinha 2 Ti 2025

Stanton Sherpa Ti (Gen 4) 2025

Geometry & Specs

Frame Size 17 19 21
Estimated Rider Height 165cm - 176cm 176cm - 186cm 186cm - 195cm
Specified Rider Height 165cm - 178cm 178cm - 188cm 188cm - 193cm
Class
Style xtra rowdy xtra rowdy xtra rowdy
Material titanium titanium titanium
Fork suspension suspension suspension
Handlebar flat bar flat bar flat bar
Suspension Correction
Top Tube Effective Length 600 625 650
Effective Top Tube Length (Est) 596.1580 621.1491 646.1503
Reach 440.99 461.22 481.46
Stack 599.99 618.40 636.81
Standover
Head Tube Angle 67 67 67
Seat Tube Angle 75.5 75.5 75.5
Chainstay Length 435 435 435
Front Center 720 747 775
Bottom Bracket Drop 56 56 56
Trail 110 110 110
Trail 45 103 103 103
UDH YES YES YES
Tire Width Max 700c 63 63 63
Tire Width Max 650b 3 3 3
Axle Spacing 142/148 142/148 142/148
Stealth Dropper YES YES YES
Seatpost Diameter 31.6 31.6 31.6
Max Chainring 1x
Dropout fixed fixed fixed
Internal Storage
Frame Weight 1940
Base Build USD
Frameset USD $2280 $2280 $2280
Location Matlock, Derbyshire, United Kingdom Matlock, Derbyshire, United Kingdom Matlock, Derbyshire, United Kingdom

Related

See where the Stanton Sherpa Ti (Gen 4) 2025 fits into The GravelVerse, a plot that compares overall similarity of frame geometry among gravel bikes.

Compare three other bikes to the Stanton Sherpa Ti (Gen 4) 2025 on key frame specs and frame geometry measures.

See how the geometry changes if you add a suspension fork to the Stanton Sherpa Ti (Gen 4) 2025.
