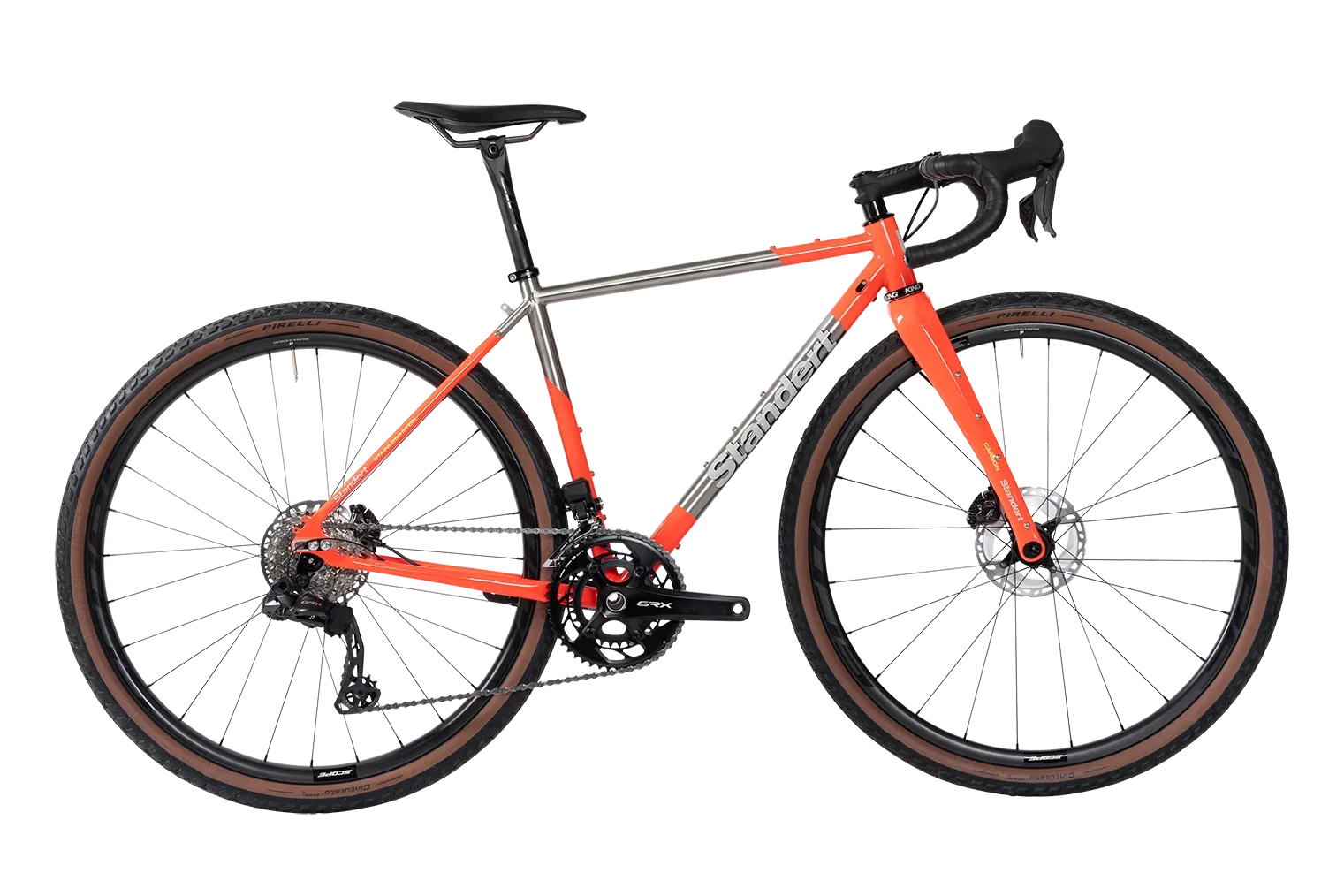

Standert Erdgeschoss 2025

Brand: Standert
Model: Erdgeschoss
Year: 2025
Category: Gravel
Similar bikes: Standert Kettensäge 2025, Chumba Terlingua Steel (short) 2025, Cannondale SuperX 2025, Reilly Gradient 2025, Simpatico N1 Gravel 2025

Geometry & Specs

Frame Size	48	50	52	54	56	58	60
Estimated Rider Height	152cm - 160cm	160cm - 167cm	167cm - 173cm	173cm - 177cm	177cm - 183cm	183cm - 190cm	190cm - 197cm
Specified Rider Height	150cm - 160cm	160cm - 168cm	168cm - 174cm	174cm - 178cm	178cm - 184cm	184cm - 190cm	190cm - 198cm
Class	Gravel	Gravel	Gravel	Gravel	Gravel	Gravel	Gravel
Style	racy	racy	racy	racy	racy	racy	racy
Material	steel	steel	steel	steel	steel	steel	steel
Fork	rigid	rigid	rigid	rigid	rigid	rigid	rigid
Handlebar	drop bar	drop bar	drop bar	drop bar	drop bar	drop bar	drop bar
Suspension Correction	0 mm	0 mm	0 mm	0 mm	0 mm	0 mm	0 mm
Top Tube Effective Length	500	520	530	545	560	575	585
Effective Top Tube Length (Est)	497.6009	517.8087	528.4246	543.9967	559.2493	574.0754	584.4957
Reach	373	381	384	386	391	394	398
Stack	519	529	539	551	568	589	610
Standover	746	760	774	789	805	826	846
Head Tube Angle	71.25	71.25	71.50	71.50	72.00	72.00	72.50
Seat Tube Angle	76.5	75.5	75.0	74.0	73.5	73.0	73.0
Chainstay Length	425	425	425	425	425	425	425
Front Center	576	588	592	598	604	614	619
Bottom Bracket Drop	65	65	65	65	65	65	65
Trail	72	71	70	70	66	66	63
Trail 45	72	71	70	70	66	66	63
UDH	YES	YES	YES	YES	YES	YES	YES
Tire Width Max 700c	50	50	50	50	50	50	50
Tire Width Max 650b	2.1	2.1	2.1	2.1	2.1	2.1	2.1
Axle Spacing	142 (road)	142 (road)	142 (road)	142 (road)	142 (road)	142 (road)	142 (road)
Stealth Dropper	NO/Unknown	NO/Unknown	NO/Unknown	NO/Unknown	NO/Unknown	NO/Unknown	NO/Unknown
Seatpost Diameter	27.2	27.2	27.2	27.2	27.2	27.2	27.2
Max Chainring 1x
Dropout	fixed	fixed	fixed	fixed	fixed	fixed	fixed
Internal Storage
Frame Weight				1980
Base Build USD
Frameset USD	$2534	$2534	$2534	$2534	$2534	$2534	$2534
Location	Berlin, Germany	Berlin, Germany	Berlin, Germany	Berlin, Germany	Berlin, Germany	Berlin, Germany	Berlin, Germany

Related

See where the Standert Erdgeschoss 2025 fits into The GravelVerse, a plot that compares overall similarity of frame geometry among gravel bikes.

Compare three other bikes to the Standert Erdgeschoss 2025 on key frame specs and frame geometry measures.

See how the geometry changes if you add a suspension fork to the Standert Erdgeschoss 2025.
