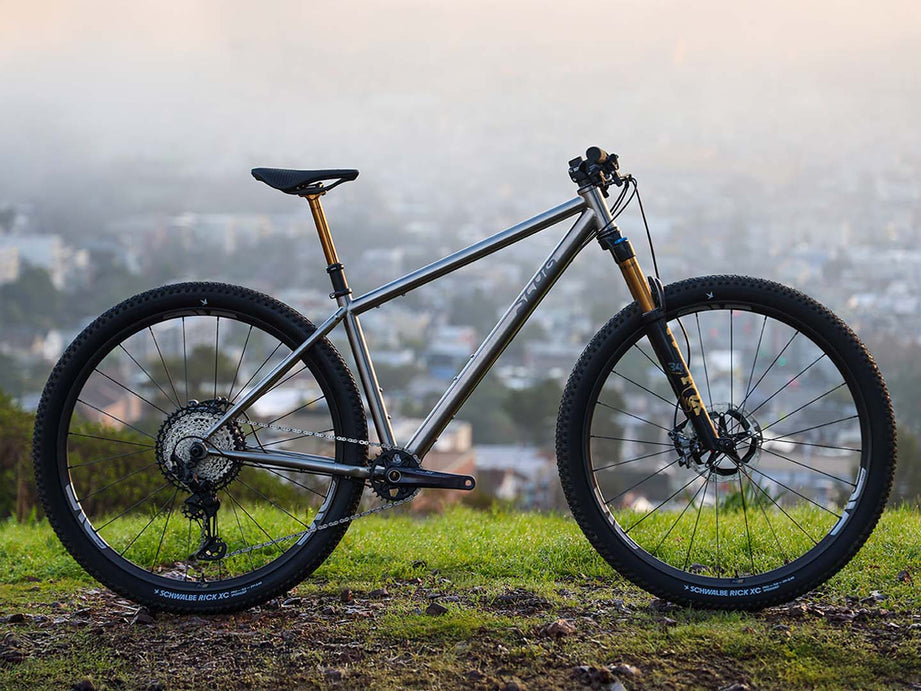

Slug gasser 2025

Brand: Slug
Model: gasser
Year: 2025
Category: NA
Similar bikes: Turner Nitrous Ti 2025, Mason Raw 2025, Marin Pine Mountain 2 2025, Fairlight Holt 2.0 2025, Sanitas Tap Root 2025

Slug gasser 2025

Geometry & Specs

Frame Size S M L XL XXL
Estimated Rider Height 163cm - 169cm 169cm - 176cm 176cm - 183cm 183cm - 189cm 189cm - 195cm
Specified Rider Height
Class
Style xtra rowdy xtra rowdy xtra rowdy xtra rowdy xtra rowdy
Material titanium titanium titanium titanium titanium
Fork suspension suspension suspension suspension suspension
Handlebar flat bar flat bar flat bar flat bar flat bar
Suspension Correction 120 mm 120 mm 120 mm 120 mm 120 mm
Top Tube Effective Length 600 620 650 670 684
Effective Top Tube Length (Est) 597.2185 616.1011 646.9836 665.8662 679.9673
Reach 425 440 467 482 490
Stack 621 635 649 663 685
Standover 672 701 740 779 794
Head Tube Angle 66.5 66.5 66.5 66.5 66.5
Seat Tube Angle 74.5 74.5 74.5 74.5 74.5
Chainstay Length 440 440 440 440 440
Front Center 717 738 771 792 810
Bottom Bracket Drop 60 60 60 60 60
Trail 114 114 114 114 114
Trail 45 107 107 107 107 107
UDH YES YES YES YES YES
Tire Width Max 700c 66 66 66 66 66
Tire Width Max 650b 0 0 0 0 0
Axle Spacing
Stealth Dropper YES YES YES YES YES
Seatpost Diameter
Max Chainring 1x 36 36 36 36 36
Dropout fixed fixed fixed fixed fixed
Internal Storage
Frame Weight
Base Build USD $5900 $5900 $5900 $5900 $5900
Frameset USD $2700 $2700 $2700 $2700 $2700
Location San Francisco, California, USA San Francisco, California, USA San Francisco, California, USA San Francisco, California, USA San Francisco, California, USA

Related

See where the Slug gasser 2025 fits into The GravelVerse, a plot that compares overall similarity of frame geometry among gravel bikes.

Compare three other bikes to the Slug gasser 2025 on key frame specs and frame geometry measures.

See how the geometry changes if you add a suspension fork to the Slug gasser 2025.
