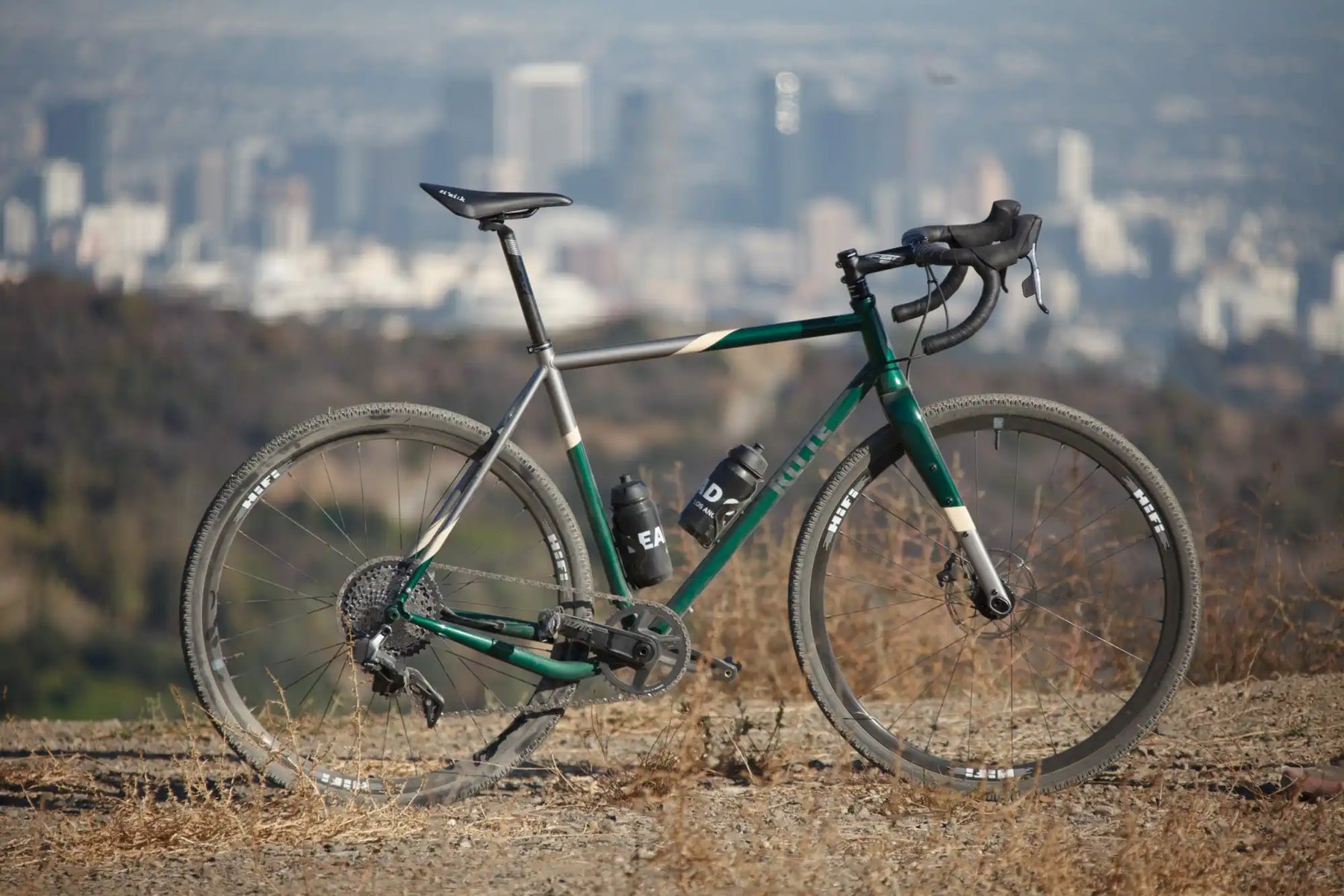

Ritte Satyr 2025

Brand: Ritte
Model: Satyr
Year: 2025
Category: Gravel
Similar bikes: Ritte SaTir 2025, Finna Odyssey 2025, Litespeed Toscano 2025, Onguza Bliksem 2025, Awson Gravel GT 2025

Ritte Satyr 2025

Geometry & Specs

Frame Size XS S M L XL XXL
Estimated Rider Height 155cm - 161cm 161cm - 168cm 168cm - 175cm 175cm - 181cm 181cm - 187cm 187cm - 194cm
Specified Rider Height
Class Gravel Gravel Gravel Gravel Gravel Gravel
Style relaxed relaxed relaxed relaxed relaxed relaxed
Material steel steel steel steel steel steel
Fork rigid rigid rigid rigid rigid rigid
Handlebar drop bar drop bar drop bar drop bar drop bar drop bar
Suspension Correction 0 mm 0 mm 0 mm 0 mm 0 mm 0 mm
Top Tube Effective Length 525 540 555 565 578 592
Effective Top Tube Length (Est) 523.975 538.029 553.583 564.407 577.396 591.440
Reach 372 376 388 388 392 401
Stack 530 547 559 577 588 604
Standover
Head Tube Angle 71.0 71.5 71.5 72.0 72.0 72.5
Seat Tube Angle 74.0 73.5 73.5 73.0 72.5 72.5
Chainstay Length 435 435 435 435 435 435
Front Center 583 590 607 601 610 620
Bottom Bracket Drop 80 80 78 78 74 74
Trail 66 63 63 66 66 62
Trail 45 64 61 61 64 64 61
UDH YES YES YES YES YES YES
Tire Width Max 700c 50 50 50 50 50 50
Tire Width Max 650b 2.2 2.2 2.2 2.2 2.2 2.2
Axle Spacing 142 (road) 142 (road) 142 (road) 142 (road) 142 (road) 142 (road)
Stealth Dropper YES YES YES YES YES YES
Seatpost Diameter 27.2 27.2 27.2 27.2 27.2 27.2
Max Chainring 1x 46 46 46 46 46 46
Dropout fixed fixed fixed fixed fixed fixed
Internal Storage
Frame Weight
Base Build USD $4250 $4250 $4250 $4250 $4250 $4250
Frameset USD $2675 $2675 $2675 $2675 $2675 $2675
Location Los Angeles, California, USA Los Angeles, California, USA Los Angeles, California, USA Los Angeles, California, USA Los Angeles, California, USA Los Angeles, California, USA
