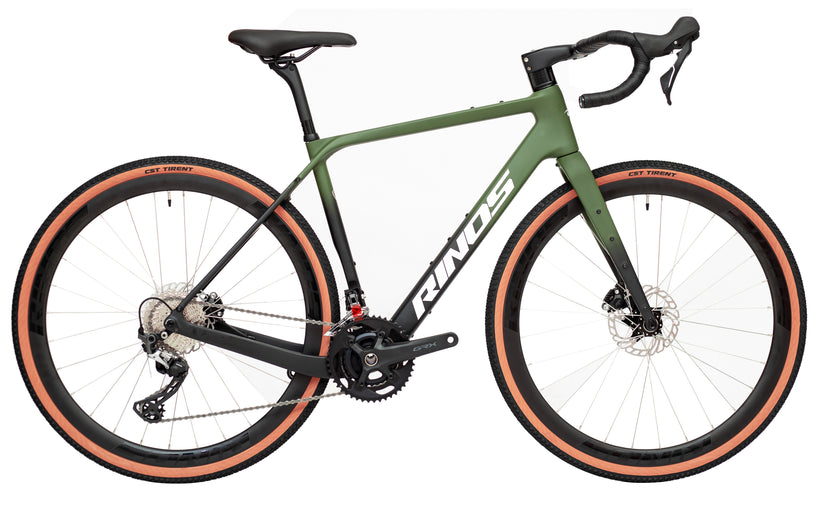

Rinos Sandman 2025

Brand: Rinos
Model: Sandman
Year: 2025
Category: Gravel
Similar bikes: Enigma Edge 2025, Neuhaus Epyon 2025, Weis MFG Gravel Steel 2025, Weis MFG Gravel Ti 2025, Obed GVR 2025

Geometry & Specs

Frame Size	XS	S	M	L	XL
Estimated Rider Height	151cm - 160cm	160cm - 170cm	170cm - 177cm	177cm - 184cm	184cm - 193cm
Specified Rider Height	150cm - 160cm	160cm - 170cm	170cm - 180cm	180cm - 190cm	190cm - 200cm
Class	Gravel	Gravel	Gravel	Gravel	Gravel
Style	racy	racy	racy	racy	racy
Material	carbon	carbon	carbon	carbon	carbon
Fork	rigid	rigid	rigid	rigid	rigid
Handlebar	drop bar	drop bar	drop bar	drop bar	drop bar
Suspension Correction	0 mm	0 mm	0 mm	0 mm	0 mm
Top Tube Effective Length	511	522	539	556	573
Effective Top Tube Length (Est)	510.9233	511.4357	539.0256	555.8841	584.4852
Reach	362	364	373	381	389
Stack	537	560	579	600	620
Standover
Head Tube Angle	70.00	70.75	71.00	71.25	71.25
Seat Tube Angle	74.50	75.25	74.00	73.75	72.50
Chainstay Length	425	425	425	425	425
Front Center	584	587	600	612	627
Bottom Bracket Drop	75	75	75	75	75
Trail	75	70	68	66	66
Trail 45	76	71	70	68	68
UDH	YES	YES	YES	YES	YES
Tire Width Max 700c	50	50	50	50	50
Tire Width Max 650b	2.1	2.1	2.1	2.1	2.1
Axle Spacing	142 (road)	142 (road)	142 (road)	142 (road)	142 (road)
Stealth Dropper	YES	YES	YES	YES	YES
Seatpost Diameter	27.2	27.2	27.2	27.2	27.2
Max Chainring 1x
Dropout	fixed	fixed	fixed	fixed	fixed
Internal Storage
Frame Weight
Base Build USD	$2248	$2248	$2248	$2248	$2248
Frameset USD
Location	Frankfurt, Germany	Frankfurt, Germany	Frankfurt, Germany	Frankfurt, Germany	Frankfurt, Germany
