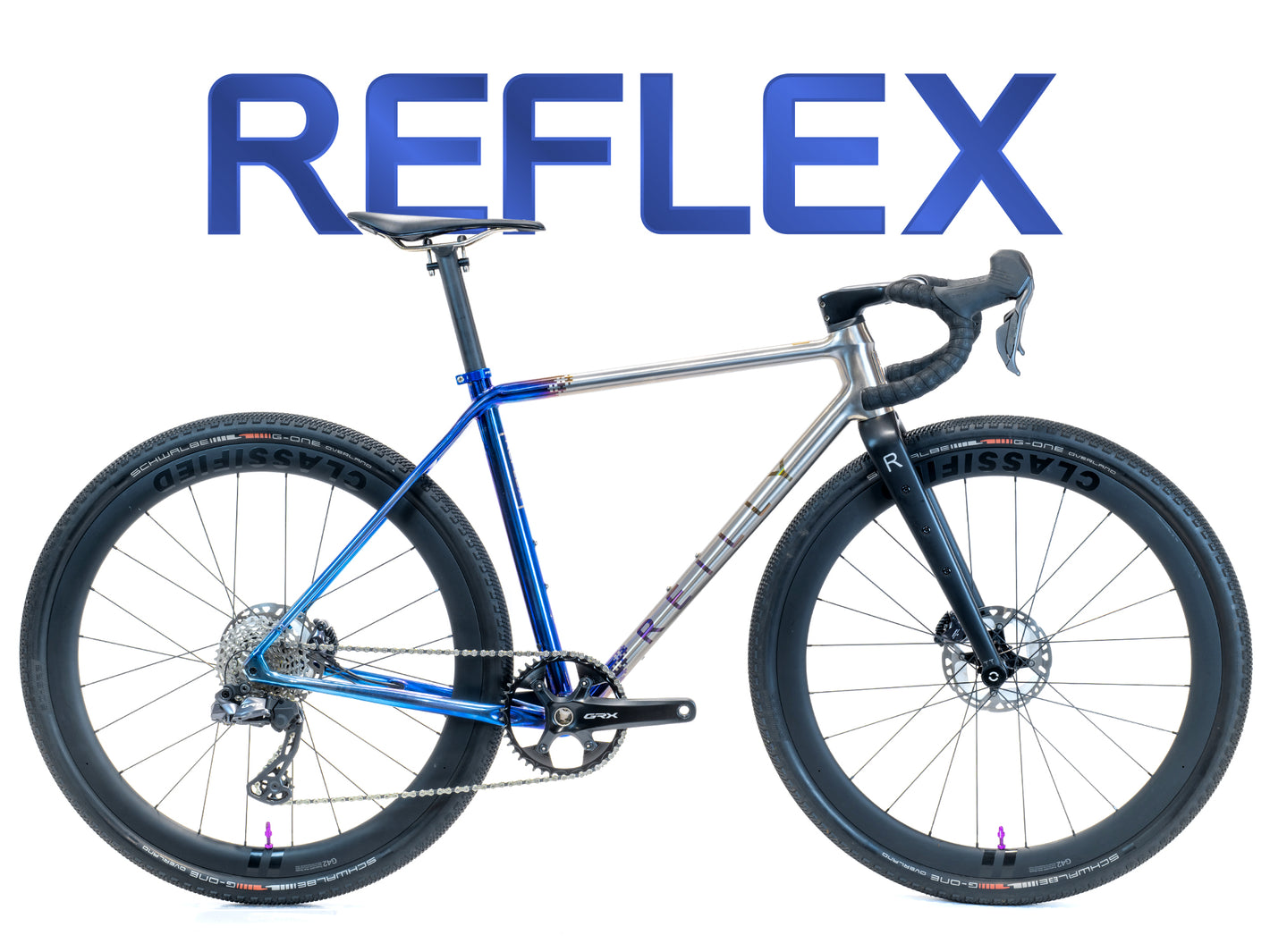

Reilly Reflex 2025

Brand: Reilly
Model: Reflex
Year: 2025
Category: Gravel
Similar bikes: Gloria All Gravel 2025, Reilly Gradient 2025, Tritao Groont 3D 2025, Surly Straggler 2025, Slug Earthling 2025

Reilly Reflex 2025

Geometry & Specs

Frame Size XXS M XS S L XL
Estimated Rider Height 155cm - 161cm 173cm - 180cm 161cm - 167cm 167cm - 173cm 180cm - 187cm 187cm - 193cm
Specified Rider Height 155cm - 162cm 172cm - 182cm 162cm - 166cm 166cm - 172cm 182cm - 186cm 186cm - 193cm
Class Gravel Gravel Gravel Gravel Gravel Gravel
Style racy racy racy racy racy racy
Material titanium titanium titanium titanium titanium titanium
Fork rigid rigid rigid rigid rigid rigid
Handlebar drop bar drop bar drop bar drop bar drop bar drop bar
Suspension Correction 0 mm 0 mm 0 mm 0 mm 0 mm 0 mm
Top Tube Effective Length 500 550 520 540 570 590
Effective Top Tube Length (Est) 500.3959 549.8714 520.3932 539.9080 570.4697 589.8843
Reach 369 387 388 392 396 404
Stack 527 568 531 552 589 608
Standover
Head Tube Angle 69.5 71.5 70.5 71.0 72.0 72.0
Seat Tube Angle 76.0 74.0 76.0 75.0 73.5 73.0
Chainstay Length 430 430 430 430 430 430
Front Center 590 604 601 608 614 629
Bottom Bracket Drop 70 70 70 70 70 70
Trail 81 68 74 71 65 65
Trail 45 83 70 76 73 66 66
UDH YES YES YES YES YES YES
Tire Width Max 700c 55 55 55 55 55 55
Tire Width Max 650b 0 0 0 0 0 0
Axle Spacing 142 (road) 142 (road) 142 (road) 142 (road) 142 (road) 142 (road)
Stealth Dropper YES YES YES YES YES YES
Seatpost Diameter 31.6 31.6 31.6 31.6 31.6 31.6
Max Chainring 1x
Dropout fixed fixed fixed fixed fixed fixed
Internal Storage
Frame Weight
Base Build USD $4695 $4695 $4695 $4695 $4695 $4695
Frameset USD $2729 $2729 $2729 $2729 $2729 $2729
Location Westerham, England Westerham, England Westerham, England Westerham, England Westerham, England Westerham, England
