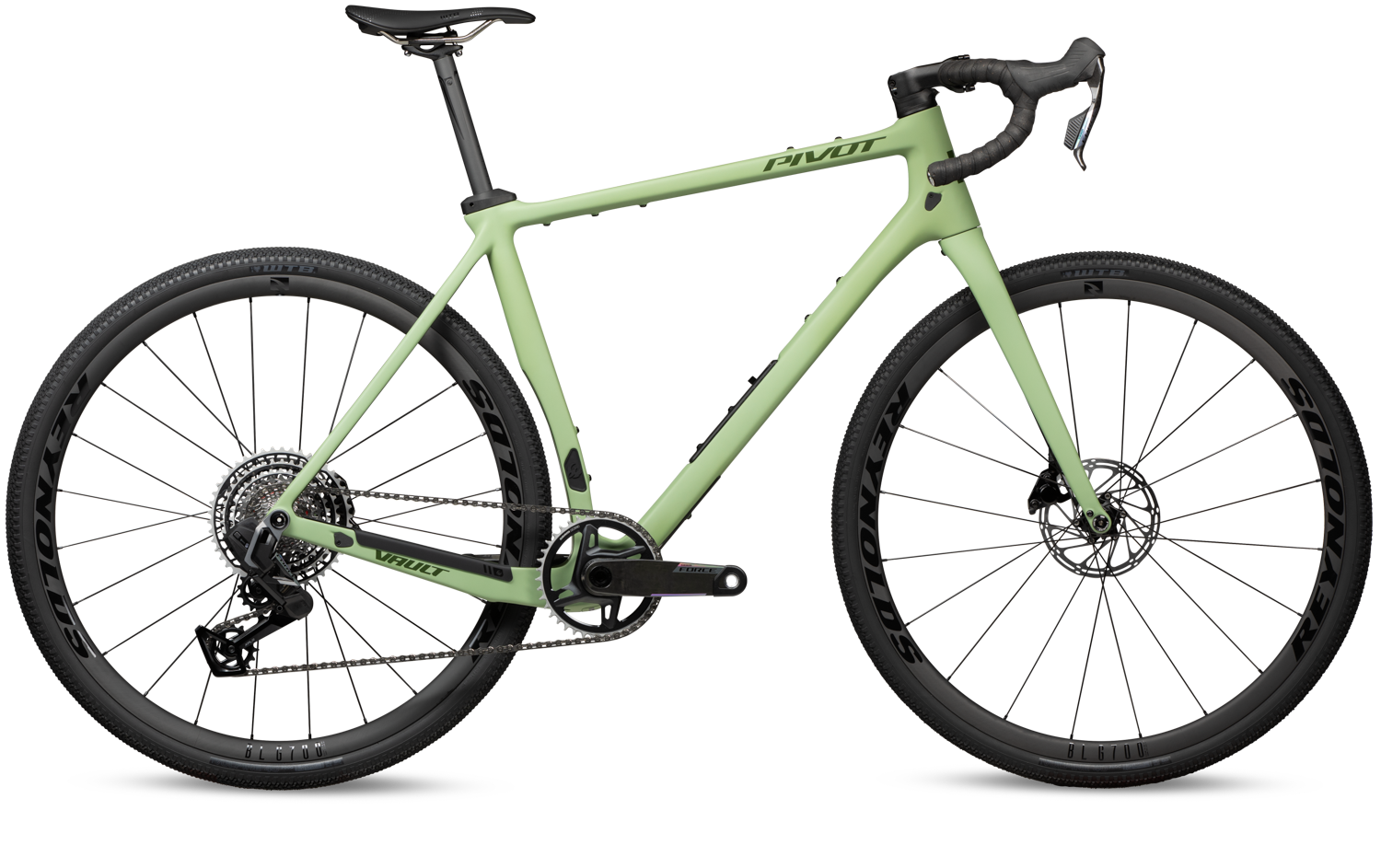

Pivot Vault 2025

Brand: Pivot
Model: Vault
Year: 2025
Category: Gravel
Similar bikes: Focus Atlas 6 2025, Focus Atlas 8 2025, Commencal 365 2023, Pilot SCRAM 2025, GT Grade Carbon 2025

Pivot Vault 2025

Geometry & Specs

Frame Size XXS XS S M L XL
Estimated Rider Height 147cm - 156cm 156cm - 165cm 165cm - 175cm 175cm - 183cm 183cm - 190cm 190cm - 198cm
Specified Rider Height 147cm - 154cm 154cm - 163cm 163cm - 173cm 173cm - 183cm 183cm - 188cm 188cm - 198cm
Class Gravel Gravel Gravel Gravel Gravel Gravel
Style rowdy rowdy rowdy rowdy rowdy rowdy
Material carbon carbon carbon carbon carbon carbon
Fork rigid rigid rigid rigid rigid rigid
Handlebar drop bar drop bar drop bar drop bar drop bar drop bar
Suspension Correction 30 mm 30 mm 30 mm 30 mm 30 mm 30 mm
Top Tube Effective Length 502 536 555 586 600 620
Effective Top Tube Length (Est) 501.7451 535.7224 555.0193 585.9926 599.9671 620.3619
Reach 360 380 390 405 415 425
Stack 529 554 568 592 605 639
Standover 666 708 750 772 791 815
Head Tube Angle 69.0 70.0 70.4 70.7 70.8 71.0
Seat Tube Angle 75.0 74.3 73.8 73.0 73.0 73.0
Chainstay Length 420 420 420 420 420 420
Front Center 588 608 621 641 655 674
Bottom Bracket Drop 80 78 76 75 73 73
Trail 79 72 69 68 67 66
Trail 45 81 74 72 70 69 68
UDH YES YES YES YES YES YES
Tire Width Max 700c 50 50 50 50 50 50
Tire Width Max 650b 0 0 0 0 0 0
Axle Spacing
Stealth Dropper YES YES YES YES YES YES
Seatpost Diameter
Max Chainring 1x
Dropout fixed fixed fixed fixed fixed fixed
Internal Storage yes yes yes yes yes yes
Frame Weight
Base Build USD $3999 $3999 $3999 $3999 $3999 $3999
Frameset USD $2899 $2899 $2899 $2899 $2899 $2899
Location Tempe, Arizona, USA Tempe, Arizona, USA Tempe, Arizona, USA Tempe, Arizona, USA Tempe, Arizona, USA Tempe, Arizona, USA
