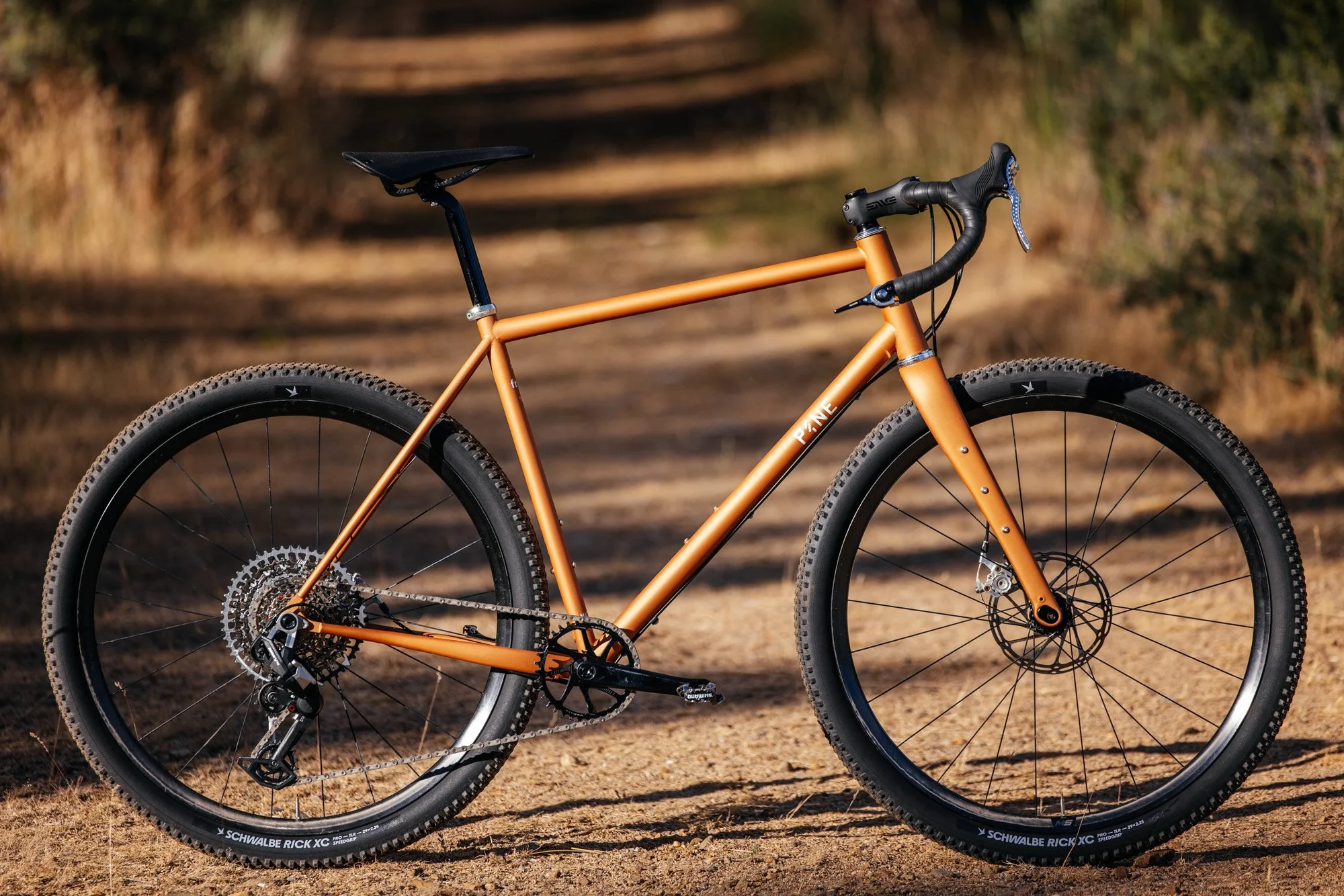

Pine Cycles FRST Gravel 2025

Brand: Pine Cycles
Model: FRST Gravel
Year: 2025
Category: Gravel
Similar bikes: Ridley Kanzo Adventure 2025, Curve Big Kev 2025, Panorama Katahdin 2.1 2025, Allied Able 2025, Litespeed Flint 2025

Geometry & Specs

Frame Size	XS	S	M	L	XL
Estimated Rider Height	158cm - 166cm	166cm - 174cm	174cm - 181cm	181cm - 188cm	188cm - 196cm
Specified Rider Height
Class	Gravel	Gravel	Gravel	Gravel	Gravel
Style	rowdy	rowdy	rowdy	rowdy	rowdy
Material	steel	steel	steel	steel	steel
Fork	rigid	rigid	rigid	rigid	rigid
Handlebar	drop bar	drop bar	drop bar	drop bar	drop bar
Suspension Correction	0 mm	0 mm	0 mm	0 mm	0 mm
Top Tube Effective Length	530	550	567	590	591
Effective Top Tube Length (Est)	531.4449	550.4593	567.1870	590.0689	608.5098
Reach	368	383	396	412	427
Stack	570	584	597	621	633
Standover	747	764	789	815	830
Head Tube Angle	70.5	70.5	70.5	70.5	70.5
Seat Tube Angle	74	74	74	74	74
Chainstay Length	434	434	434	434	434
Front Center	601	631	639	664	683
Bottom Bracket Drop	77	77	77	77	77
Trail	73	73	73	73	73
Trail 45	67	67	67	67	67
UDH	YES	YES	YES	YES	YES
Tire Width Max 700c	58	58	58	58	58
Tire Width Max 650b	0	0	0	0	0
Axle Spacing	142 (road)	142 (road)	142 (road)	142 (road)	142 (road)
Stealth Dropper	YES	YES	YES	YES	YES
Seatpost Diameter	27.2	27.2	27.2	27.2	27.2
Max Chainring 1x	44	44	44	44	44
Dropout	fixed	fixed	fixed	fixed	fixed
Internal Storage
Frame Weight
Base Build USD	$4500	$4500	$4500	$4500	$4500
Frameset USD	$2500	$2500	$2500	$2500	$2500
Location	Seattle, Washington, USA	Seattle, Washington, USA	Seattle, Washington, USA	Seattle, Washington, USA	Seattle, Washington, USA
