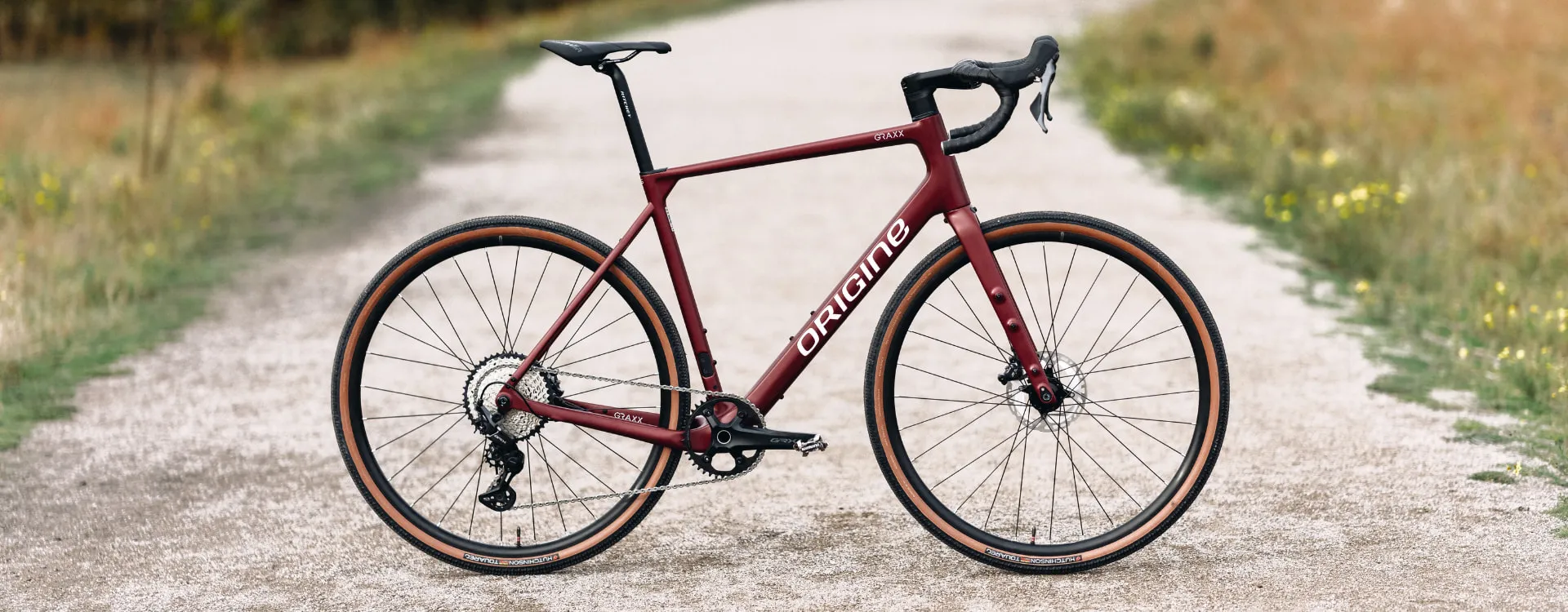

Origine Graxx GTS 2025

Brand: Origine
Model: Graxx GTS
Year: 2025
Category: Gravel
Similar bikes: Origine Graxx GTO 2025, Origine Graxx GTR 2025, Neuhaus Epyon 2025, Rose Backroad XPLR 2022, Marin Nicasio 2025

Geometry & Specs

Frame Size	XS	S	M	L	XL
Estimated Rider Height	150cm - 161cm	161cm - 171cm	171cm - 180cm	180cm - 190cm	190cm - 201cm
Specified Rider Height	150cm - 160cm	160cm - 170cm	170cm - 180cm	180cm - 190cm	190cm - 203cm
Class	Gravel	Gravel	Gravel	Gravel	Gravel
Style	racy	racy	racy	racy	racy
Material	carbon	carbon	carbon	carbon	carbon
Fork	rigid	rigid	rigid	rigid	rigid
Handlebar	both	both	both	both	both
Suspension Correction	0 mm	0 mm	0 mm	0 mm	0 mm
Top Tube Effective Length	515	540	555	570	585
Effective Top Tube Length (Est)	514.8646	539.8344	555.0961	569.9514	584.9496
Reach	364.00	378.11	387.35	394.75	404.30
Stack	544	564	585	611	630
Standover
Head Tube Angle	70.5	71.0	71.3	72.0	72.0
Seat Tube Angle	74.5	74.0	74.0	74.0	74.0
Chainstay Length	430	430	430	430	430
Front Center	584	600	613	622	638
Bottom Bracket Drop	75	75	75	75	75
Trail	71	68	66	61	61
Trail 45	73	70	68	63	63
UDH	YES	YES	YES	YES	YES
Tire Width Max 700c	45	45	45	45	45
Tire Width Max 650b	1.9	1.9	1.9	1.9	1.9
Axle Spacing	142 (road)	142 (road)	142 (road)	142 (road)	142 (road)
Stealth Dropper	NO/Unknown	NO/Unknown	NO/Unknown	NO/Unknown	NO/Unknown
Seatpost Diameter	27.2	27.2	27.2	27.2	27.2
Max Chainring 1x	44	44	44	44	44
Dropout	fixed	fixed	fixed	fixed	fixed
Internal Storage
Frame Weight
Base Build USD	$2601	$2601	$2601	$2601	$2601
Frameset USD
Location	Rouvignies, France	Rouvignies, France	Rouvignies, France	Rouvignies, France	Rouvignies, France
