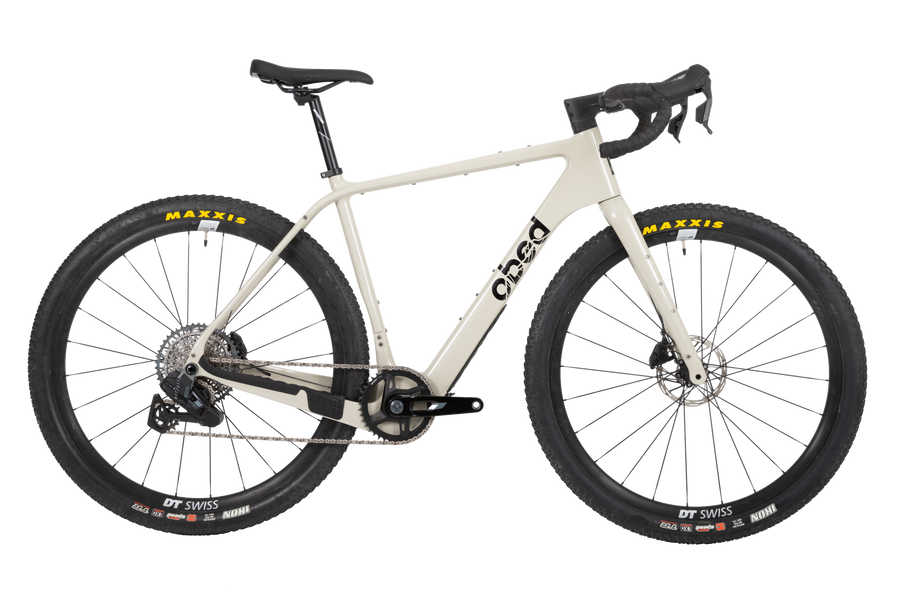

Obed MMR 2025

Brand: Obed
Model: MMR
Year: 2025
Category: Gravel
Similar bikes: Canyon Grizl Esc 2025, Reeb The Sam’s Pants 2025, Litespeed Flint (suspension corrected) 2025, Soma Jawbone Type A 2025, Propain Terrel CF 2024

Obed MMR 2025

Geometry & Specs

Frame Size XS S M L
Estimated Rider Height 152cm - 161cm 161cm - 171cm 171cm - 181cm 181cm - 191cm
Specified Rider Height 152cm - 162cm 162cm - 169cm 169cm - 180cm 180cm - 193cm
Class Gravel Gravel Gravel Gravel
Style rowdy rowdy rowdy rowdy
Material carbon carbon carbon carbon
Fork rigid rigid rigid rigid
Handlebar drop bar drop bar drop bar drop bar
Suspension Correction 30 mm 30 mm 30 mm 30 mm
Top Tube Effective Length 520 541 562 578
Effective Top Tube Length (Est) 519.7553 540.5774 561.8038 577.7281
Reach 370 380 390 400
Stack 540 560 580 600
Standover 715 749 805 834
Head Tube Angle 69.0 69.5 70.0 70.0
Seat Tube Angle 74.5 74.0 73.5 73.5
Chainstay Length 440 440 440 440
Front Center 602 615 627 644
Bottom Bracket Drop 76 76 74 74
Trail 83 80 76 76
Trail 45 83 80 76 76
UDH YES YES YES YES
Tire Width Max 700c 57 57 57 57
Tire Width Max 650b 0 0 0 0
Axle Spacing
Stealth Dropper YES YES YES YES
Seatpost Diameter
Max Chainring 1x
Dropout fixed fixed fixed fixed
Internal Storage yes yes yes yes
Frame Weight
Base Build USD $3499 $3499 $3499 $3499
Frameset USD
Location Chattanooga, Tennessee, USA Chattanooga, Tennessee, USA Chattanooga, Tennessee, USA Chattanooga, Tennessee, USA

Related

See where the Obed MMR 2025 fits into The GravelVerse, a plot that compares overall similarity of frame geometry among gravel bikes.

Compare three other bikes to the Obed MMR 2025 on key frame specs and frame geometry measures.

See how the geometry changes if you add a suspension fork to the Obed MMR 2025.
