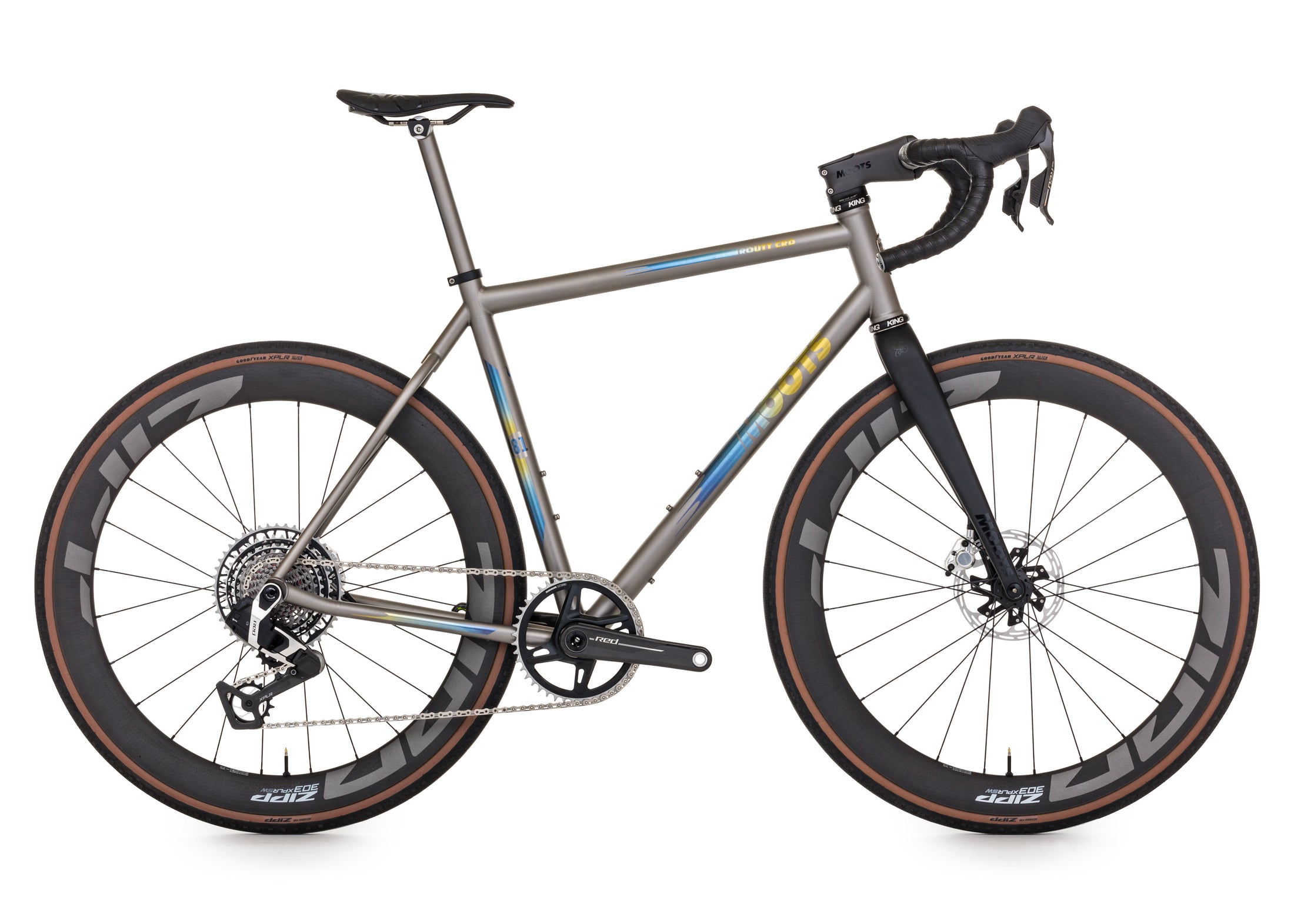

Moots Routt CRD 2025

Brand: Moots
Model: Routt CRD
Year: 2025
Category: Gravel
Similar bikes: 8Bar Mitte Steel V3 2in1 2025, 8Bar Mitte Ti V1 2in1 2025, 8Bar Mitte V3 2in1 2025, Niner RLT 9 RDO 2022, Ibis Hakka MX 2025

Geometry & Specs

Frame Size	52	50	54	55	56	58	60
Estimated Rider Height	165cm - 170cm	160cm - 165cm	170cm - 175cm	175cm - 179cm	179cm - 183cm	183cm - 187cm	187cm - 192cm
Specified Rider Height	166cm - 172cm	160cm - 166cm	172cm - 176cm	176cm - 179cm	179cm - 182cm	182cm - 184cm	184cm - 193cm
Class	Gravel	Gravel	Gravel	Gravel	Gravel	Gravel	Gravel
Style	racy	racy	racy	racy	racy	racy	racy
Material	titanium	titanium	titanium	titanium	titanium	titanium	titanium
Fork	rigid	rigid	rigid	rigid	rigid	rigid	rigid
Handlebar	drop bar	drop bar	drop bar	drop bar	drop bar	drop bar	drop bar
Suspension Correction	0 mm	0 mm	0 mm	0 mm	0 mm	0 mm	0 mm
Top Tube Effective Length	530	520	545	555	565	590	605
Effective Top Tube Length (Est)	527.2949	517.0515	542.3195	552.5432	567.9872	583.6931	603.8988
Reach	364	367	374	376	385	392	403
Stack	579	560	587	596	608	627	647
Standover	762.00	749.30	782.32	792.48	802.64	815.34	861.06
Head Tube Angle	71.00	71.00	71.50	71.50	72.00	72.00	72.25
Seat Tube Angle	74.25	75.00	74.00	73.50	73.25	73.00	72.75
Chainstay Length	430	430	430	430	430	430	430
Front Center	589	585	597	602	610	623	638
Bottom Bracket Drop	71	71	69	69	69	69	68
Trail	75	75	71	71	68	68	66
Trail 45	73	73	70	70	66	66	65
UDH	YES	YES	YES	YES	YES	YES	YES
Tire Width Max 700c	45	45	45	45	45	45	45
Tire Width Max 650b	0	0	0	0	0	0	0
Axle Spacing	142 (road)	142 (road)	142 (road)	142 (road)	142 (road)	142 (road)	142 (road)
Stealth Dropper	YES	YES	YES	YES	YES	YES	YES
Seatpost Diameter	27.2	27.2	27.2	27.2	27.2	27.2	27.2
Max Chainring 1x
Dropout	fixed	fixed	fixed	fixed	fixed	fixed	fixed
Internal Storage
Frame Weight
Base Build USD	$8250	$8250	$8250	$8250	$8250	$8250	$8250
Frameset USD	$5999	$5999	$5999	$5999	$5999	$5999	$5999
Location	Steamboat Springs, Colorado, USA	Steamboat Springs, Colorado, USA	Steamboat Springs, Colorado, USA	Steamboat Springs, Colorado, USA	Steamboat Springs, Colorado, USA	Steamboat Springs, Colorado, USA	Steamboat Springs, Colorado, USA

Related

See where the Moots Routt CRD 2025 fits into The GravelVerse, a plot that compares overall similarity of frame geometry among gravel bikes.

Compare three other bikes to the Moots Routt CRD 2025 on key frame specs and frame geometry measures.

See how the geometry changes if you add a suspension fork to the Moots Routt CRD 2025.
