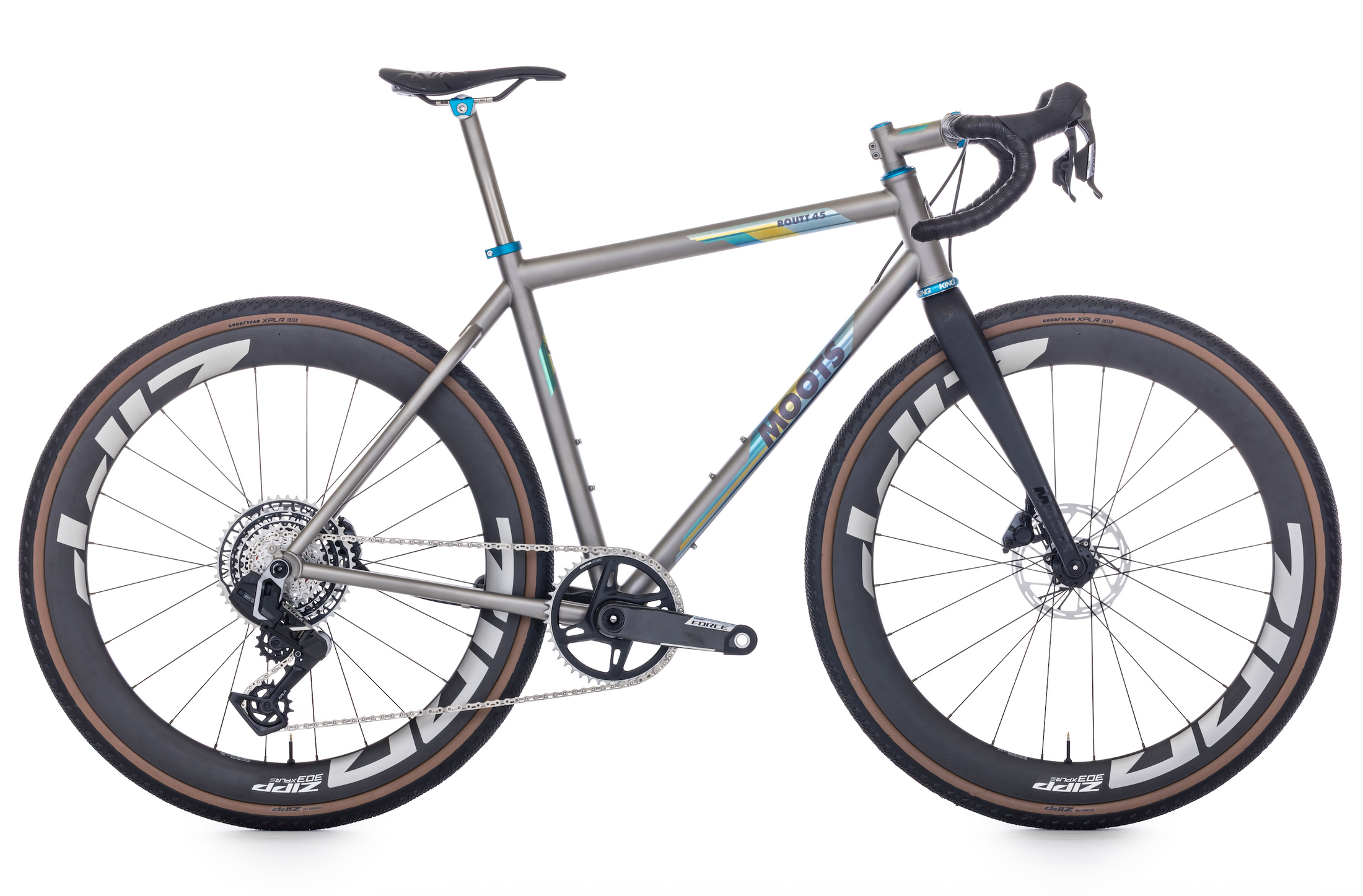

Moots Routt 45 2025

Brand: Moots
Model: Routt 45
Year: 2025
Category: Gravel
Similar bikes: Van Nicholas Rowtag 2025, Sour Purple Haze 2025, State Titanium All-Road 2025, Kinesis Tripster ATR V3 2025, Cube NuRoad 2026

Geometry & Specs

Frame Size	52	50	54	55	56	58	60
Estimated Rider Height	165cm - 171cm	159cm - 165cm	171cm - 176cm	176cm - 179cm	179cm - 182cm	182cm - 187cm	187cm - 193cm
Specified Rider Height	166cm - 172cm	160cm - 166cm	172cm - 176cm	176cm - 179cm	179cm - 182cm	182cm - 184cm	184cm - 193cm
Class	Gravel	Gravel	Gravel	Gravel	Gravel	Gravel	Gravel
Style	rowdy	rowdy	rowdy	rowdy	rowdy	rowdy	rowdy
Material	titanium	titanium	titanium	titanium	titanium	titanium	titanium
Fork	rigid	rigid	rigid	rigid	rigid	rigid	rigid
Handlebar	drop bar	drop bar	drop bar	drop bar	drop bar	drop bar	drop bar
Suspension Correction	0 mm	0 mm	0 mm	0 mm	0 mm	0 mm	0 mm
Top Tube Effective Length	530	520	545	555	570	585	605
Effective Top Tube Length (Est)	527.2949	517.0515	542.3195	552.5432	567.9872	583.6931	603.8988
Reach	364	367	374	376	385	392	403
Stack	579	560	587	596	608	627	647
Standover	787.40	762.00	802.64	810.26	822.96	838.20	858.52
Head Tube Angle	70.25	70.25	70.50	70.50	71.00	71.00	71.50
Seat Tube Angle	74.25	75.00	74.00	73.50	73.25	73.00	72.75
Chainstay Length	437	437	437	437	437	437	437
Front Center	596	593	607	612	620	634	646
Bottom Bracket Drop	71	71	69	69	69	69	68
Trail	80	80	78	78	75	75	71
Trail 45	78	78	76	76	73	73	70
UDH	YES	YES	YES	YES	YES	YES	YES
Tire Width Max 700c	50	50	50	50	50	50	50
Tire Width Max 650b	0	0	0	0	0	0	0
Axle Spacing	142 (road)	142 (road)	142 (road)	142 (road)	142 (road)	142 (road)	142 (road)
Stealth Dropper	NO/Unknown	NO/Unknown	NO/Unknown	NO/Unknown	NO/Unknown	NO/Unknown	NO/Unknown
Seatpost Diameter	27.2	27.2	27.2	27.2	27.2	27.2	27.2
Max Chainring 1x
Dropout	fixed	fixed	fixed	fixed	fixed	fixed	fixed
Internal Storage
Frame Weight
Base Build USD	$8250	$8250	$8250	$8250	$8250	$8250	$8250
Frameset USD	$5999	$5999	$5999	$5999	$5999	$5999	$5999
Location	Steamboat Springs, Colorado, USA	Steamboat Springs, Colorado, USA	Steamboat Springs, Colorado, USA	Steamboat Springs, Colorado, USA	Steamboat Springs, Colorado, USA	Steamboat Springs, Colorado, USA	Steamboat Springs, Colorado, USA
