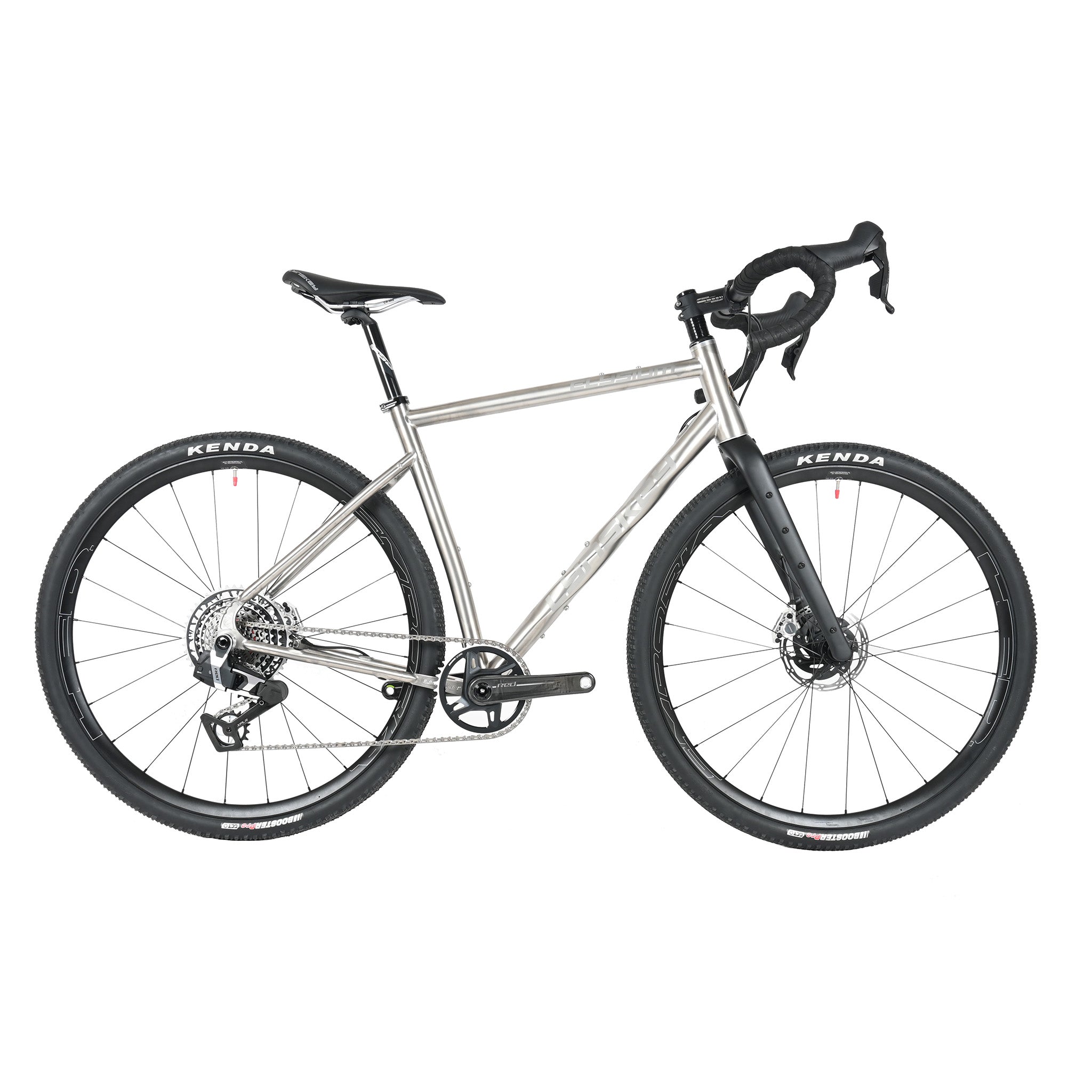

Lynskey Elysium 2025

Brand: Lynskey
Model: Elysium
Year: 2025
Category: Gravel
Similar bikes: Lynskey Zephyr 2025, Fairlight Secan 3.0 T 2025, Curtis The G.O.A.T 2025, Lynskey Odyssey 2025, Turner Cyclosis Ti 2025

Geometry & Specs

Frame Size	XS	S	M	ML	L	XL	XXL
Estimated Rider Height	153cm - 160cm	160cm - 167cm	167cm - 174cm	174cm - 180cm	180cm - 188cm	188cm - 194cm	194cm - 201cm
Specified Rider Height	152cm - 158cm	158cm - 166cm	166cm - 174cm	174cm - 182cm	182cm - 189cm	189cm - 196cm	196cm - 200cm
Class	Gravel	Gravel	Gravel	Gravel	Gravel	Gravel	Gravel
Style	rowdy	rowdy	rowdy	rowdy	rowdy	rowdy	rowdy
Material	carbon	carbon	carbon	carbon	carbon	carbon	carbon
Fork	rigid	rigid	rigid	rigid	rigid	rigid	rigid
Handlebar	drop bar	drop bar	drop bar	drop bar	drop bar	drop bar	drop bar
Suspension Correction	0 mm	0 mm	0 mm	0 mm	0 mm	0 mm	0 mm
Top Tube Effective Length	519	533	545	560	574	594	619
Effective Top Tube Length (Est)	529.955	538.806	549.434	559.655	573.764	594.750	618.728
Reach	370	375	380	384	391	400	410
Stack	540	553	572	593	617	637	662
Standover	716	737	758	780	800	824	824
Head Tube Angle	70.0	70.0	70.5	70.5	71.0	71.0	71.5
Seat Tube Angle	73.5	73.5	73.5	73.5	73.5	73.0	72.5
Chainstay Length	430	430	430	430	430	430	430
Front Center	584	596	603	616	626	652	656
Bottom Bracket Drop	75	75	75	75	75	75	75
Trail	80	80	77	77	73	73	70
Trail 45	82	82	78	78	75	75	72
UDH	YES	YES	YES	YES	YES	YES	YES
Tire Width Max 700c	50	50	50	50	50	50	50
Tire Width Max 650b	0	0	0	0	0	0	0
Axle Spacing
Stealth Dropper	NO/Unknown	NO/Unknown	NO/Unknown	NO/Unknown	NO/Unknown	NO/Unknown	NO/Unknown
Seatpost Diameter
Max Chainring 1x
Dropout	fixed	fixed	fixed	fixed	fixed	fixed	fixed
Internal Storage
Frame Weight	1723.356	1768.707	1814.059	1859.410	1904.762	1950.113	1995.465
Base Build USD	$9150	$9150	$9150	$9150	$9150	$9150	$9150
Frameset USD	$4450	$4450	$4450	$4450	$4450	$4450	$4450
Location	Chattanooga, Tennessee, USA	Chattanooga, Tennessee, USA	Chattanooga, Tennessee, USA	Chattanooga, Tennessee, USA	Chattanooga, Tennessee, USA	Chattanooga, Tennessee, USA	Chattanooga, Tennessee, USA
