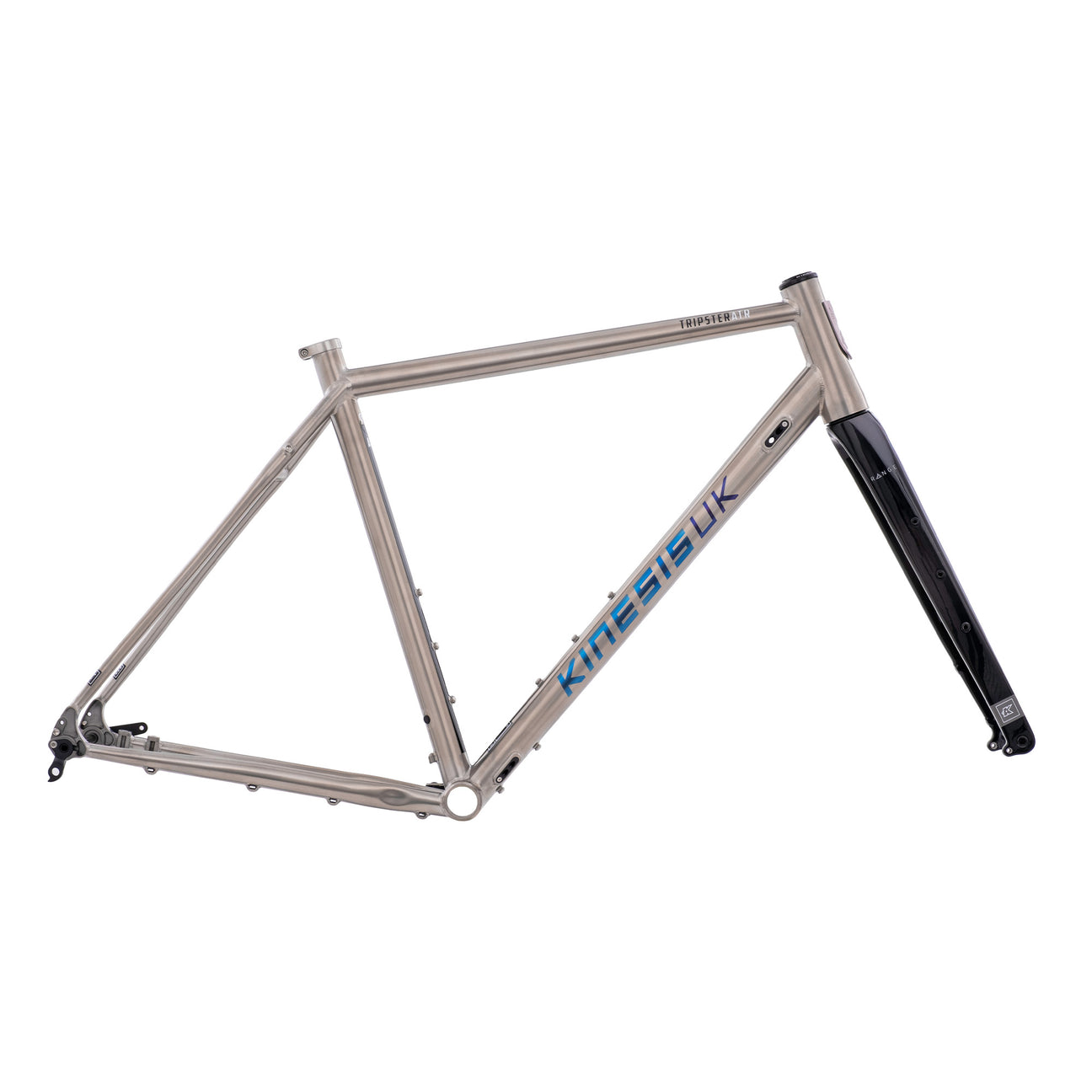

Kinesis Tripster ATR V3 2025

Brand: Kinesis
Model: Tripster ATR V3
Year: 2025
Category: Gravel
Similar bikes: Planet X Tempest 2025, State 6061 All-Road 2025, On-One Free Ranger 2025, Breezer Inversion X 2025, All-City Cosmic Stallion 2022

Kinesis Tripster ATR V3 2025

Geometry & Specs

Frame Size 48XXS 50XS 52S 54M 56L 58XL 60XXL 62XXXL
Estimated Rider Height 155cm - 161cm 161cm - 168cm 168cm - 174cm 174cm - 179cm 179cm - 184cm 184cm - 191cm 191cm - 196cm 196cm - 202cm
Specified Rider Height 154cm - 162cm 162cm - 168cm 168cm - 176cm 176cm - 182cm 182cm - 188cm 188cm - 192cm 192cm - 198cm 198cm - 204cm
Class Gravel Gravel Gravel Gravel Gravel Gravel Gravel Gravel
Style relaxed relaxed relaxed relaxed relaxed relaxed relaxed relaxed
Material titanium titanium titanium titanium titanium titanium titanium titanium
Fork rigid rigid rigid rigid rigid rigid rigid rigid
Handlebar drop bar drop bar drop bar drop bar drop bar drop bar drop bar drop bar
Suspension Correction 0 mm 0 mm 0 mm 0 mm 0 mm 0 mm 0 mm 0 mm
Top Tube Effective Length 517 525 537 553 565 580 595 609
Effective Top Tube Length (Est) 516.975 524.843 537.144 553.014 565.261 577.507 589.754 609.196
Reach 365 370 378 386 393 400 407 412
Stack 530 540 555 573 591 609 627 645
Standover
Head Tube Angle 70.0 70.0 70.5 70.5 70.5 70.5 71.0 71.0
Seat Tube Angle 74.00 74.00 74.00 73.75 73.75 73.75 73.75 73.00
Chainstay Length 440 440 440 440 440 440 440 440
Front Center 583 591 600 614 627 641 648 660
Bottom Bracket Drop 70 70 70 70 70 70 70 70
Trail 80 80 76 76 76 76 73 73
Trail 45 80 80 76 76 76 76 73 73
UDH NO/Unknown NO/Unknown NO/Unknown NO/Unknown NO/Unknown NO/Unknown NO/Unknown NO/Unknown
Tire Width Max 700c 45 45 45 45 45 45 45 45
Tire Width Max 650b 2 2 2 2 2 2 2 2
Axle Spacing 142 (road) 142 (road) 142 (road) 142 (road) 142 (road) 142 (road) 142 (road) 142 (road)
Stealth Dropper NO/Unknown NO/Unknown NO/Unknown NO/Unknown NO/Unknown NO/Unknown NO/Unknown NO/Unknown
Seatpost Diameter 31.6 31.6 31.6 31.6 31.6 31.6 31.6 31.6
Max Chainring 1x
Dropout fixed fixed fixed fixed fixed fixed fixed fixed
Internal Storage
Frame Weight 1880
Base Build USD $4066 $4066 $4066 $4066 $4066 $4066 $4066 $4066
Frameset USD $2749 $2749 $2749 $2749 $2749 $2749 $2749 $2749
Location Taichung City, Taiwan Taichung City, Taiwan Taichung City, Taiwan Taichung City, Taiwan Taichung City, Taiwan Taichung City, Taiwan Taichung City, Taiwan Taichung City, Taiwan
