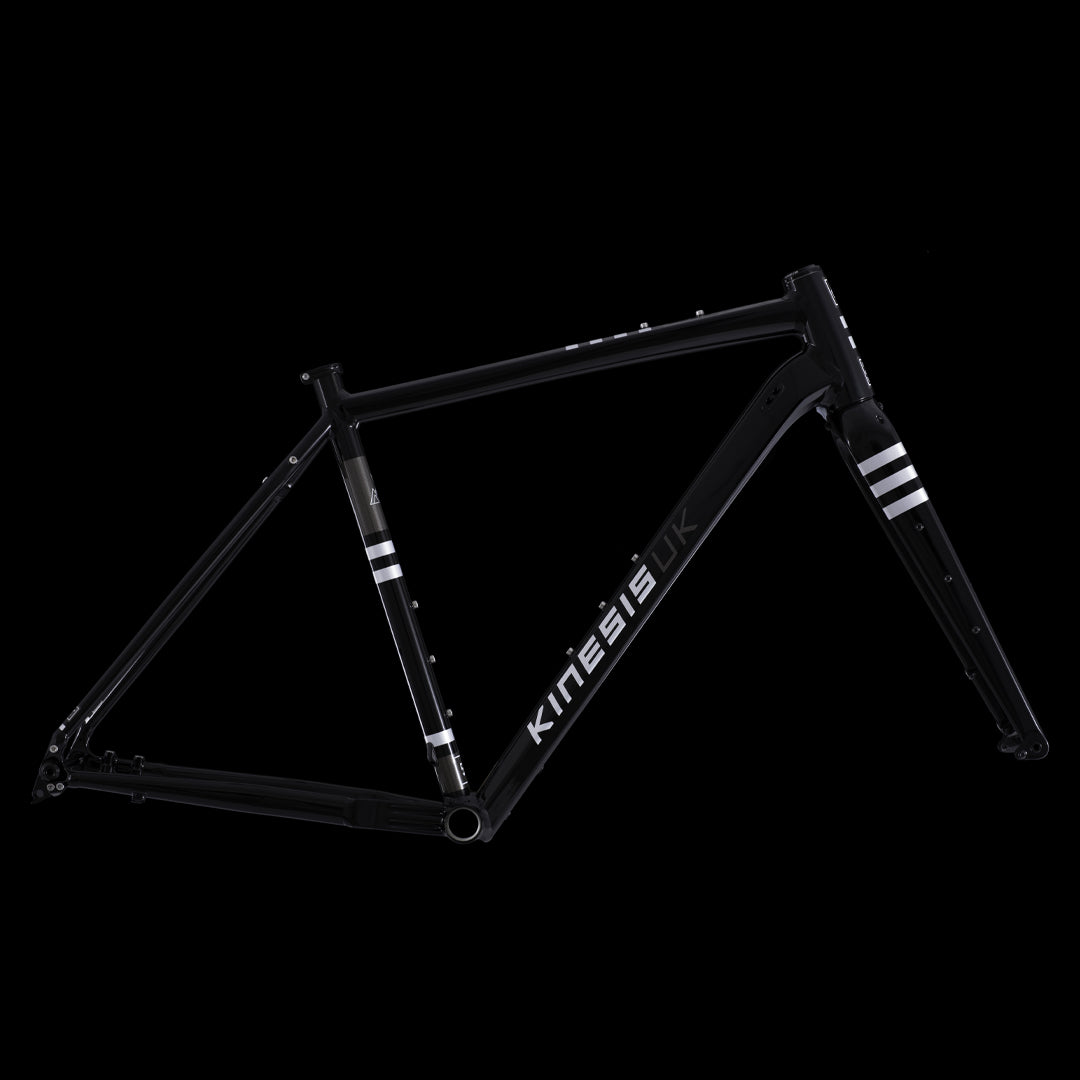

Kinesis Tripster AT Plus 2025

Brand: Kinesis
Model: Tripster AT Plus
Year: 2025
Category: Gravel
Similar bikes: Bombtrack Beyond Ti 2025, Mosaic GT-X 2025, Bombtrack Beyond Al 2025, Weis MFG Gravel Steel Plus 2025, Weis MFG Gravel Ti Plus 2025

Geometry & Specs

Frame Size	48XXS	50XS	52S	54M	56L	58XL	60XXL
Estimated Rider Height	151cm - 159cm	159cm - 165cm	165cm - 170cm	170cm - 176cm	176cm - 183cm	183cm - 189cm	189cm - 196cm
Specified Rider Height	150cm - 156cm	156cm - 162cm	162cm - 169cm	169cm - 175cm	175cm - 181cm	181cm - 186cm	186cm - 196cm
Class	Gravel	Gravel	Gravel	Gravel	Gravel	Gravel	Gravel
Style	relaxed	relaxed	relaxed	relaxed	relaxed	relaxed	relaxed
Material	aluminum	aluminum	aluminum	aluminum	aluminum	aluminum	aluminum
Fork	rigid	rigid	rigid	rigid	rigid	rigid	rigid
Handlebar	drop bar	drop bar	drop bar	drop bar	drop bar	drop bar	drop bar
Suspension Correction	30 mm	30 mm	30 mm	30 mm	30 mm	30 mm	30 mm
Top Tube Effective Length	528	539	551	565	581	597	613
Effective Top Tube Length (Est)	528.2835	538.5774	551.4521	564.9002	580.9647	597.2069	613.3268
Reach	370	378	386	394	402	410	418
Stack	552	560	577	596	614	632	649
Standover
Head Tube Angle	70.0	70.5	70.5	70.5	70.5	71.0	71.0
Seat Tube Angle	74.00	74.00	74.00	74.00	73.75	73.50	73.25
Chainstay Length	450	450	450	450	450	450	450
Front Center	595	602	616	631	646	656	670
Bottom Bracket Drop	80	77	75	75	75	72	70
Trail	76	73	73	73	73	70	70
Trail 45	76	73	73	73	73	70	70
UDH	NO/Unknown	NO/Unknown	NO/Unknown	NO/Unknown	NO/Unknown	NO/Unknown	NO/Unknown
Tire Width Max 700c	50	50	50	50	50	50	50
Tire Width Max 650b	0	0	0	0	0	0	0
Axle Spacing	142 (road)	142 (road)	142 (road)	142 (road)	142 (road)	142 (road)	142 (road)
Stealth Dropper	YES	YES	YES	YES	YES	YES	YES
Seatpost Diameter	31.6	31.6	31.6	31.6	31.6	31.6	31.6
Max Chainring 1x	44	44	44	44	44	44	44
Dropout	fixed	fixed	fixed	fixed	fixed	fixed	fixed
Internal Storage
Frame Weight	1690	1720	1750	1790	1830	1870	1910
Base Build USD	$2348	$2348	$2348	$2348	$2348	$2348	$2348
Frameset USD	$1031	$1031	$1031	$1031	$1031	$1031	$1031
Location	Taichung City, Taiwan	Taichung City, Taiwan	Taichung City, Taiwan	Taichung City, Taiwan	Taichung City, Taiwan	Taichung City, Taiwan	Taichung City, Taiwan

Related

See where the Kinesis Tripster AT Plus 2025 fits into The GravelVerse, a plot that compares overall similarity of frame geometry among gravel bikes.

Compare three other bikes to the Kinesis Tripster AT Plus 2025 on key frame specs and frame geometry measures.

See how the geometry changes if you add a suspension fork to the Kinesis Tripster AT Plus 2025.
