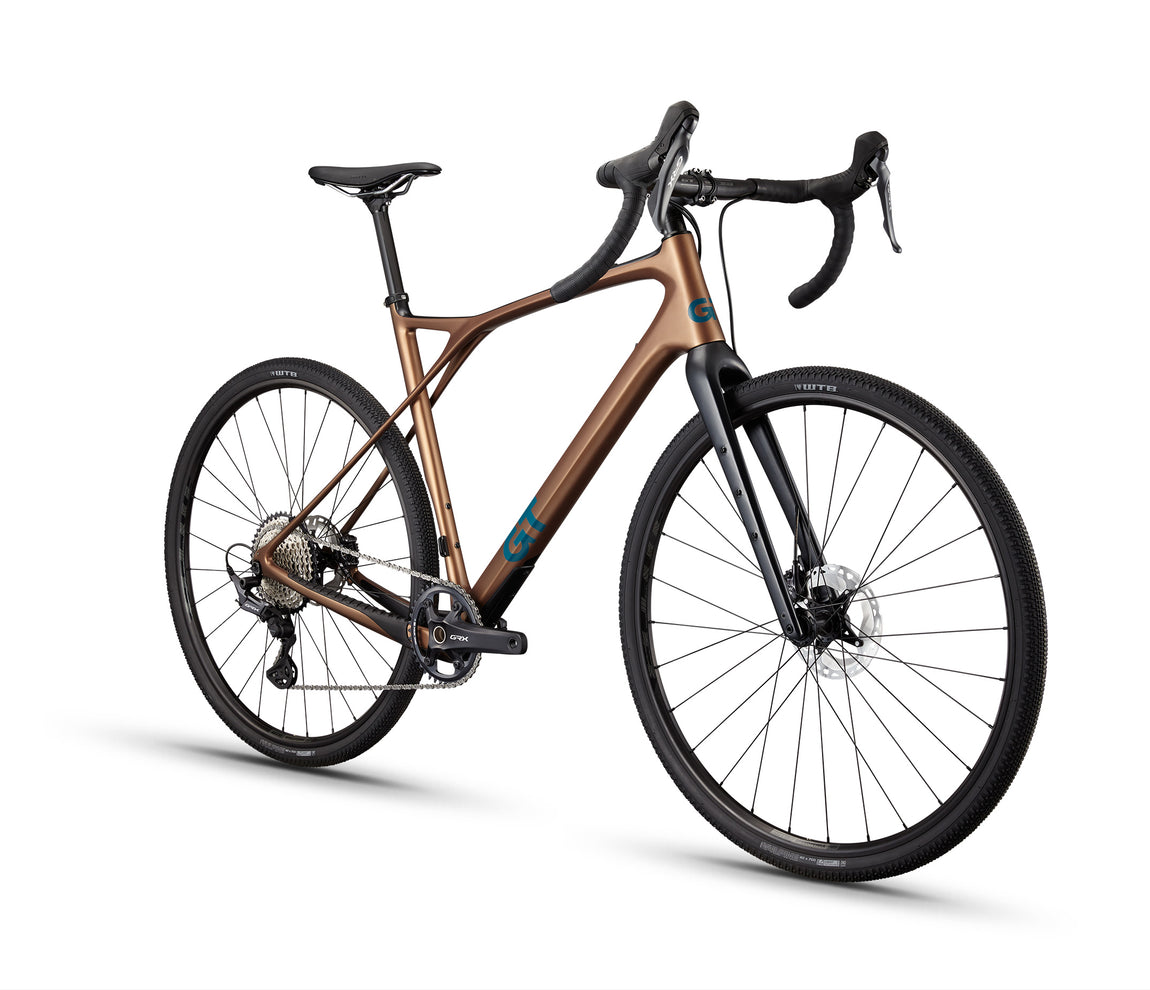

GT Grade Carbon 2025

Brand: GT
Model: Grade Carbon
Year: 2025
Category: Gravel
Similar bikes: Focus Atlas 8 2025, Propain Terrel CF 2024, Focus Atlas 6 2025, Pivot Vault 2025, Bianchi Arcadex 2025

GT Grade Carbon 2025

Geometry & Specs

Frame Size S M L XL
Estimated Rider Height 159cm - 170cm 170cm - 180cm 180cm - 188cm 188cm - 198cm
Specified Rider Height 160cm - 171cm 171cm - 180cm 180cm - 188cm 188cm - 196cm
Class Gravel Gravel Gravel Gravel
Style rowdy rowdy rowdy rowdy
Material carbon carbon carbon carbon
Fork rigid rigid rigid rigid
Handlebar drop bar drop bar drop bar drop bar
Suspension Correction 30 mm 30 mm 30 mm 30 mm
Top Tube Effective Length 553 581 609 638
Effective Top Tube Length (Est) 553.1519 581.4066 609.3556 637.6103
Reach 385 405 425 445
Stack 550 577 603 630
Standover 730 753 792 816
Head Tube Angle 70 70 70 70
Seat Tube Angle 73 73 73 73
Chainstay Length 430 430 430 430
Front Center 617 646 676 706
Bottom Bracket Drop 75 75 75 75
Trail 72 72 72 72
Trail 45 71 71 71 71
UDH NO/Unknown NO/Unknown NO/Unknown NO/Unknown
Tire Width Max 700c 45 45 45 45
Tire Width Max 650b 0 0 0 0
Axle Spacing 142 (road) 142 (road) 142 (road) 142 (road)
Stealth Dropper YES YES YES YES
Seatpost Diameter 27.2 27.2 27.2 27.2
Max Chainring 1x 42 42 42 42
Dropout fixed fixed fixed fixed
Internal Storage
Frame Weight
Base Build USD
Frameset USD $2000 $2000 $2000 $2000
Location Aliso Viejo, California, USA Aliso Viejo, California, USA Aliso Viejo, California, USA Aliso Viejo, California, USA

Related

See where the GT Grade Carbon 2025 fits into The GravelVerse, a plot that compares overall similarity of frame geometry among gravel bikes.

Compare three other bikes to the GT Grade Carbon 2025 on key frame specs and frame geometry measures.

See how the geometry changes if you add a suspension fork to the GT Grade Carbon 2025.
