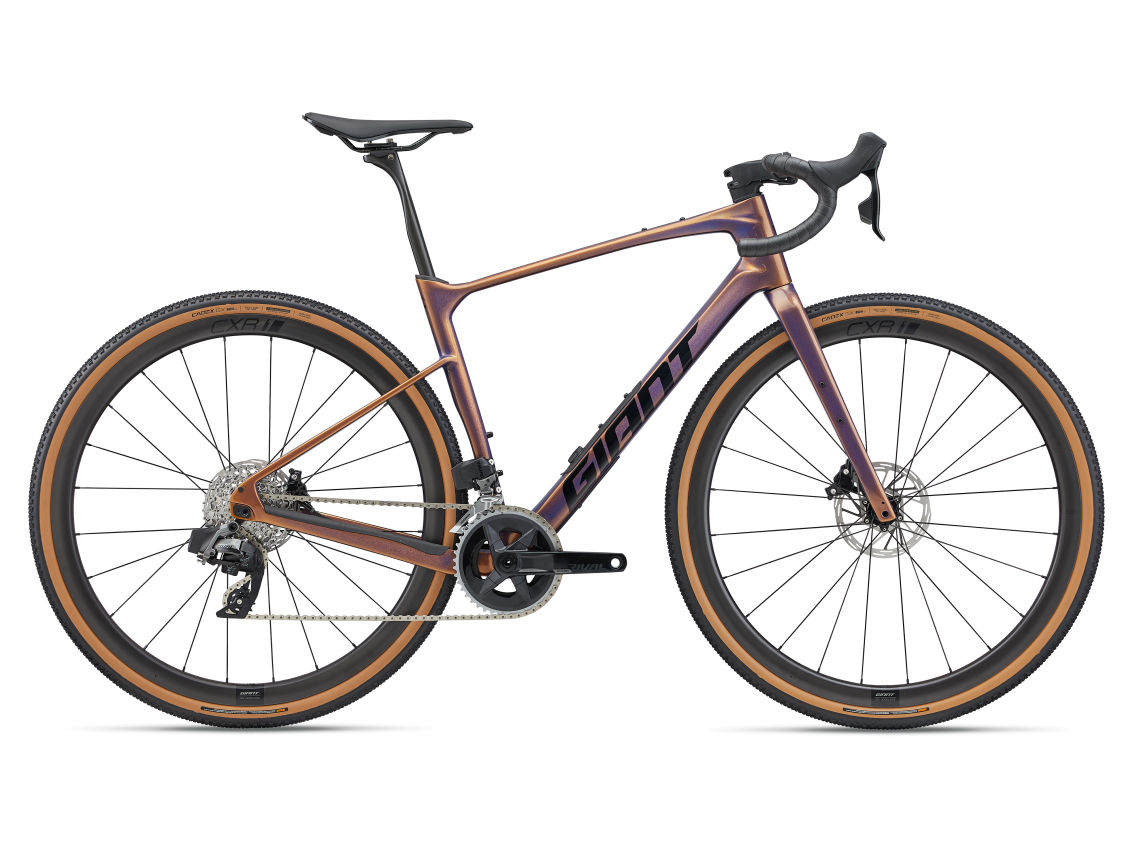

Giant Revolt Advanced Pro (long) 2025

Brand: Giant
Model: Revolt Advanced Pro (long)
Year: 2025
Category: Gravel
Similar bikes: Giant Revolt Advanced Pro (short) 2025, Onguza Bliksem 2025, Trek Checkpoint ALR (gen 3) 2025, Lüma Meridian 2025, Pearson On&On Race 2025

Giant Revolt Advanced Pro (long) 2025

Geometry & Specs

Frame Size XS S M ML L XL
Estimated Rider Height 154cm - 161cm 161cm - 170cm 170cm - 178cm 178cm - 184cm 184cm - 190cm 190cm - 199cm
Specified Rider Height 155cm - 158cm 158cm - 170cm 170cm - 178cm 178cm - 182cm 182cm - 190cm 190cm - 200cm
Class Gravel Gravel Gravel Gravel Gravel Gravel
Style relaxed relaxed relaxed relaxed relaxed relaxed
Material carbon carbon carbon carbon carbon carbon
Fork rigid rigid rigid rigid rigid rigid
Handlebar drop bar drop bar drop bar drop bar drop bar drop bar
Suspension Correction 50 mm 50 mm 50 mm 50 mm 50 mm 50 mm
Top Tube Effective Length 540 550 560 575 585 600
Effective Top Tube Length (Est) 540.430 549.842 560.581 575.050 585.330 599.610
Reach 381 381 387 391 397 407
Stack 556 570 586 602 616 630
Standover 731 747 764 780 797 814
Head Tube Angle 70.0 71.0 71.5 72.0 72.0 72.0
Seat Tube Angle 74.0 73.5 73.5 73.0 73.0 73.0
Chainstay Length 435 435 435 435 435 435
Front Center 607 603 609 614 624 639
Bottom Bracket Drop 81 81 81 81 81 81
Trail 78 72 68 65 65 65
Trail 45 76 70 66 63 63 63
UDH NO/Unknown NO/Unknown NO/Unknown NO/Unknown NO/Unknown NO/Unknown
Tire Width Max 700c 53 53 53 53 53 53
Tire Width Max 650b 0 0 0 0 0 0
Axle Spacing 142 (road) 142 (road) 142 (road) 142 (road) 142 (road) 142 (road)
Stealth Dropper YES YES YES YES YES YES
Seatpost Diameter 30.9 30.9 30.9 30.9 30.9 30.9
Max Chainring 1x
Dropout ± 10 ± 10 ± 10 ± 10 ± 10 ± 10
Internal Storage yes yes yes yes yes yes
Frame Weight
Base Build USD $5000 $5000 $5000 $5000 $5000 $5000
Frameset USD $2300 $2300 $2300 $2300 $2300 $2300
Location Dajia, Taichung, Taiwan Dajia, Taichung, Taiwan Dajia, Taichung, Taiwan Dajia, Taichung, Taiwan Dajia, Taichung, Taiwan Dajia, Taichung, Taiwan
