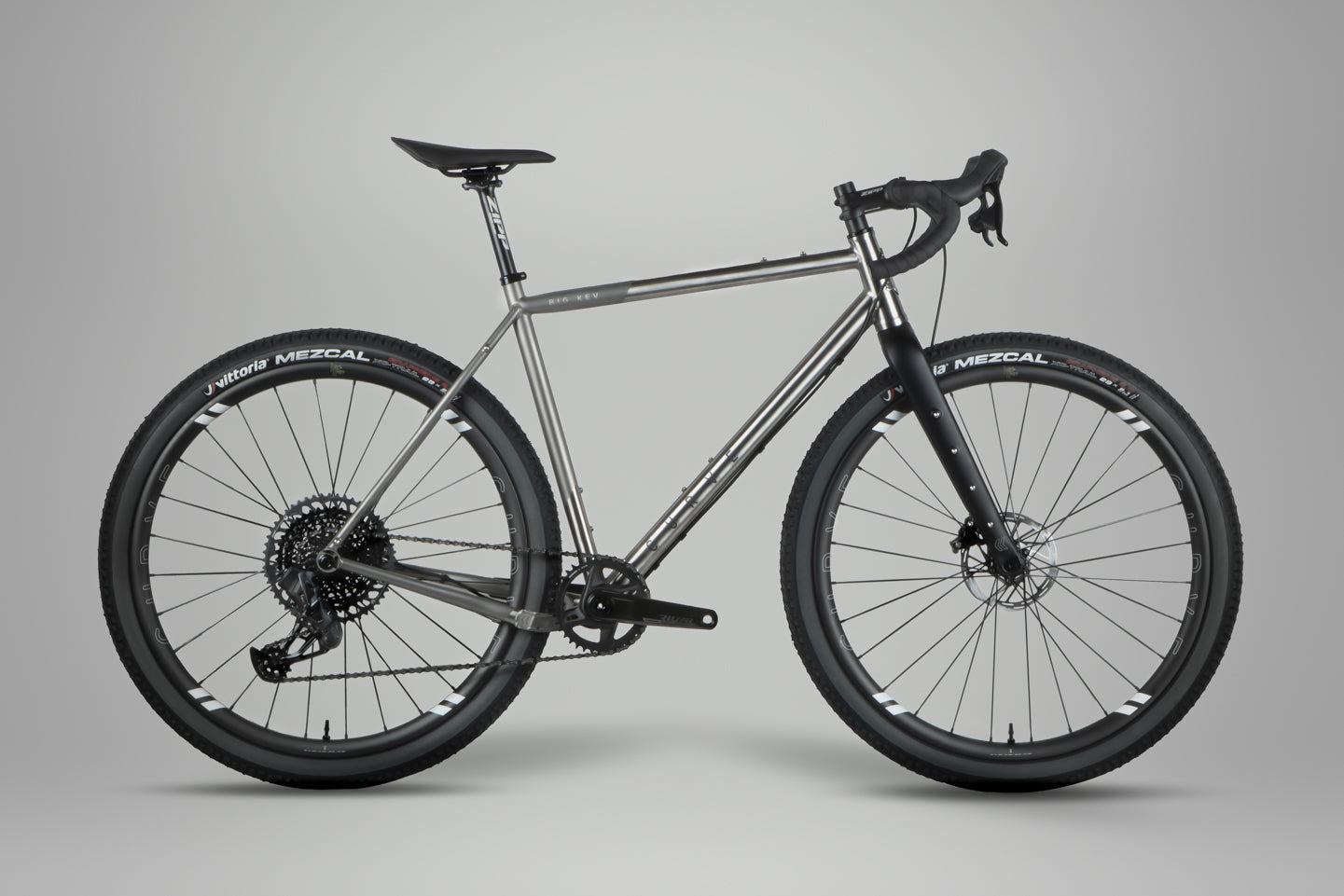

Curve Big Kev 2025

Brand: Curve
Model: Big Kev
Year: 2025
Category: Drop Bar ATB
Similar bikes: Pine Cycles FRST Gravel 2025, Bombtrack Beyond Ti 2025, Bombtrack Beyond Al 2025, Litespeed Flint (suspension corrected) 2025, Mosaic GT-X 2025

Curve Big Kev 2025

Geometry & Specs

Frame Size XXS XS S M ML L XL XXL
Estimated Rider Height 155cm - 161cm 161cm - 165cm 165cm - 171cm 171cm - 177cm 177cm - 183cm 183cm - 190cm 190cm - 197cm 197cm - 203cm
Specified Rider Height 149cm - 156cm 156cm - 163cm 163cm - 169cm 169cm - 176cm 176cm - 184cm 184cm - 192cm 192cm - 200cm 200cm - 208cm
Class Drop Bar ATB Drop Bar ATB Drop Bar ATB Drop Bar ATB Drop Bar ATB Drop Bar ATB Drop Bar ATB Drop Bar ATB
Style rowdy rowdy rowdy rowdy rowdy rowdy rowdy rowdy
Material titanium titanium titanium titanium titanium titanium titanium titanium
Fork rigid rigid rigid rigid rigid rigid rigid rigid
Handlebar drop bar drop bar drop bar drop bar drop bar drop bar drop bar drop bar
Suspension Correction 30 mm 30 mm 30 mm 30 mm 30 mm 30 mm 30 mm 30 mm
Top Tube Effective Length 524 538 556 580 591 603 622 646
Effective Top Tube Length (Est) 522.657 537.657 555.739 580.040 591.047 601.664 625.546 651.093
Reach 355 370 390 410 419 430 450 470
Stack 566 566 578 593 600 619 633 653
Standover 744 768 792 815 826 839 863 886
Head Tube Angle 70.8 70.8 70.8 70.8 70.8 70.8 70.8 70.8
Seat Tube Angle 73.5 73.5 74.0 74.0 74.0 74.5 74.5 74.5
Chainstay Length 433 433 437 437 440 440 443 443
Front Center 583 598 622 647 659 673 698 723
Bottom Bracket Drop 75 75 75 75 73 73 73 73
Trail 72 72 72 72 72 72 72 72
Trail 45 69 69 69 69 69 69 69 69
UDH YES YES YES YES YES YES YES YES
Tire Width Max 700c 59 59 59 59 59 59 59 59
Tire Width Max 650b 0 0 0 0 0 0 0 0
Axle Spacing 142 (road) 142 (road) 142 (road) 142 (road) 142 (road) 142 (road) 142 (road) 142 (road)
Stealth Dropper YES YES YES YES YES YES YES YES
Seatpost Diameter 27.2 27.2 27.2 27.2 27.2 27.2 27.2 27.2
Max Chainring 1x 40 40 40 40 40 40 40 40
Dropout fixed fixed fixed fixed fixed fixed fixed fixed
Internal Storage
Frame Weight
Base Build USD $6060 $6060 $6060 $6060 $6060 $6060 $6060 $6060
Frameset USD $2877 $2877 $2877 $2877 $2877 $2877 $2877 $2877
Location Melbourne, Australia Melbourne, Australia Melbourne, Australia Melbourne, Australia Melbourne, Australia Melbourne, Australia Melbourne, Australia Melbourne, Australia
