Brodie Elan 2.0 2025

Brand: Brodie
Model: Elan 2.0
Year: 2025
Category: NA
Similar bikes: Kinesis Tripster AT Plus 2025, Mosaic GT-X 2025, Bombtrack Beyond Al 2025, Bombtrack Beyond Ti 2025, No.22 Drifter 2025

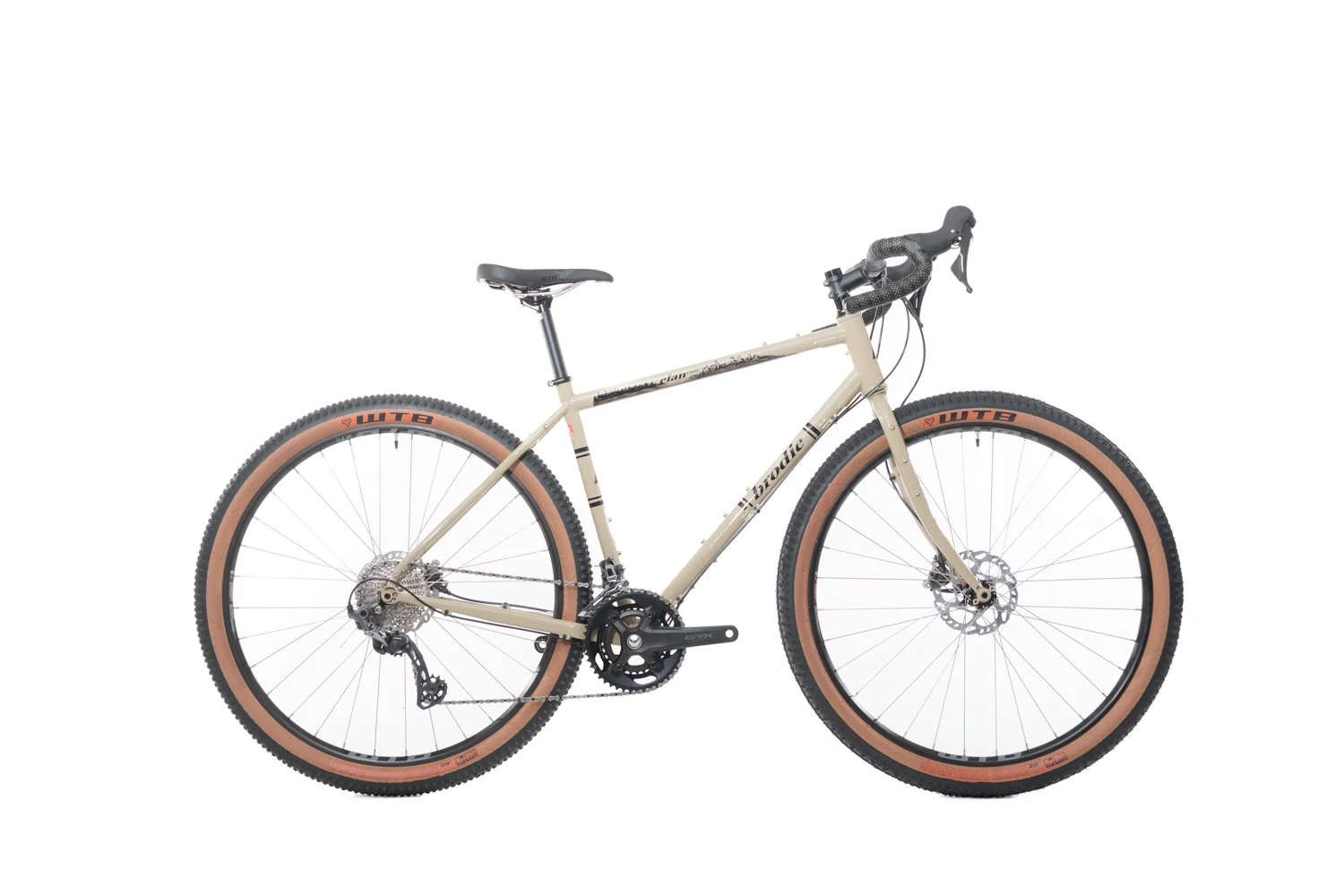

Brodie Elan 2.0 2025

Geometry & Specs

Frame Size 46S 50M 54L 58XL
Estimated Rider Height 161cm - 169cm 169cm - 177cm 177cm - 183cm 183cm - 190cm
Specified Rider Height 163cm - 171cm 171cm - 177cm 177cm - 182cm 182cm - 188cm
Class
Style relaxed relaxed relaxed relaxed
Material steel steel steel steel
Fork rigid rigid rigid rigid
Handlebar drop bar drop bar drop bar drop bar
Suspension Correction 30 mm 30 mm 30 mm 30 mm
Top Tube Effective Length 535 555 580 595
Effective Top Tube Length (Est) 535.2936 564.6207 595.0817 609.4759
Reach 375 392 404 408
Stack 578 602 625 639
Standover
Head Tube Angle 69 69 69 69
Seat Tube Angle 74.5 74.0 73.0 72.5
Chainstay Length 455 455 455 455
Front Center 614 615 641 670
Bottom Bracket Drop 80 80 80 80
Trail 82 82 82 82
Trail 45 78 78 78 78
UDH NO/Unknown NO/Unknown NO/Unknown NO/Unknown
Tire Width Max 700c 60 60 60 60
Tire Width Max 650b 0 0 0 0
Axle Spacing 142 (road) 142 (road) 142 (road) 142 (road)
Stealth Dropper YES YES YES YES
Seatpost Diameter 27.2 27.2 27.2 27.2
Max Chainring 1x
Dropout fixed fixed fixed fixed
Internal Storage
Frame Weight
Base Build USD $1568 $1568 $1568 $1568
Frameset USD
Location Burnaby, British Columbia, Canada Burnaby, British Columbia, Canada Burnaby, British Columbia, Canada Burnaby, British Columbia, Canada

Related

See where the Brodie Elan 2.0 2025 fits into The GravelVerse, a plot that compares overall similarity of frame geometry among gravel bikes.

Compare three other bikes to the Brodie Elan 2.0 2025 on key frame specs and frame geometry measures.

See how the geometry changes if you add a suspension fork to the Brodie Elan 2.0 2025.
