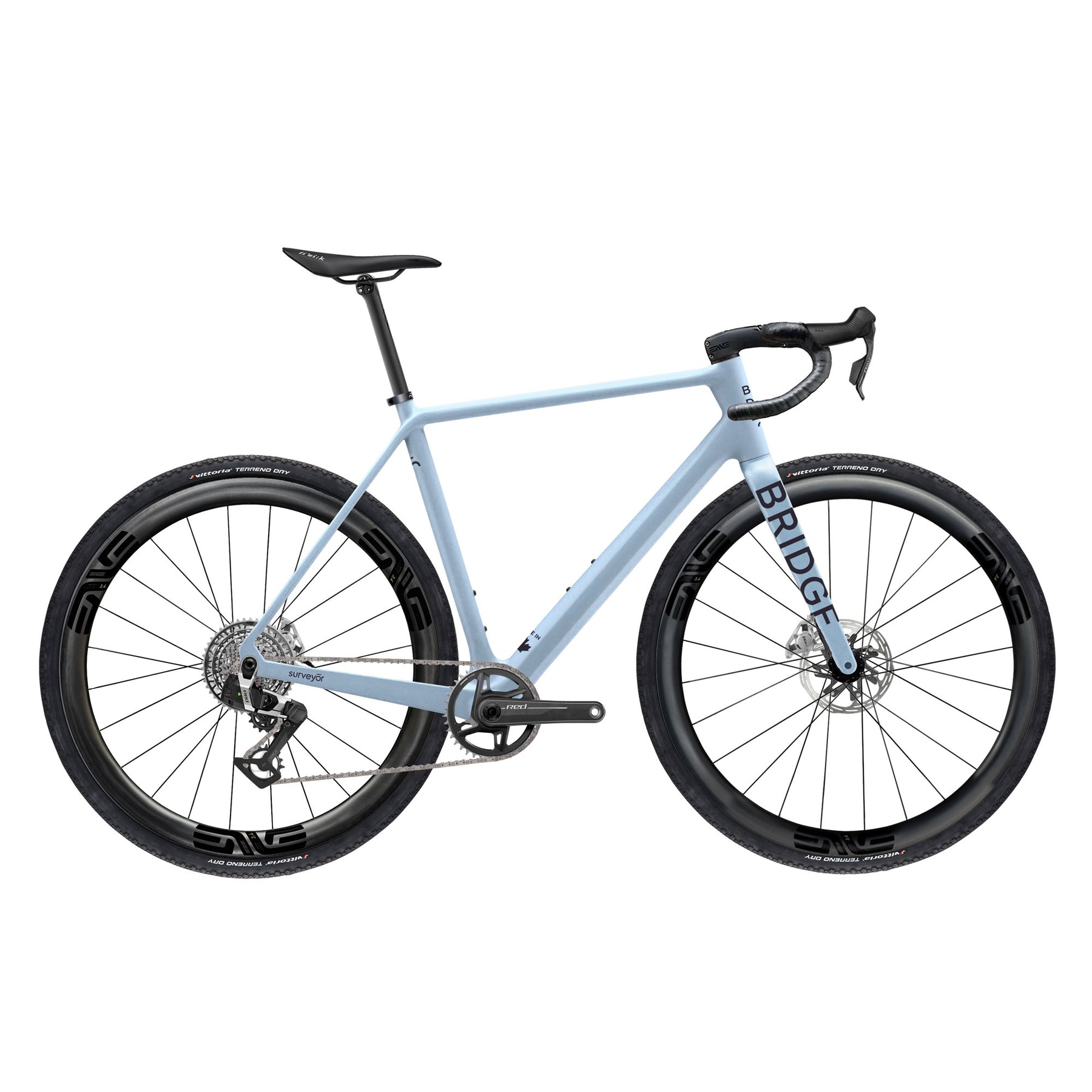

Bridge Bike Works Surveyor Gravel 2025

Brand: Bridge Bike Works
Model: Surveyor Gravel
Year: 2025
Category: Gravel
Similar bikes: Factor Aluto 2025, Devinci Hatchet Pro 2025, Cervelo Aspero 2025, Brodie Romax Ti 2.0 2025, Orbea Terra M 2023

Bridge Bike Works Surveyor Gravel 2025

Geometry & Specs

Frame Size 51 53 55 57 59
Estimated Rider Height 156cm - 164cm 164cm - 172cm 172cm - 181cm 181cm - 189cm 189cm - 197cm
Specified Rider Height 155cm - 165cm 165cm - 173cm 173cm - 180cm 180cm - 188cm 188cm - 198cm
Class Gravel Gravel Gravel Gravel Gravel
Style racy racy racy racy racy
Material carbon carbon carbon carbon carbon
Fork rigid rigid rigid rigid rigid
Handlebar drop bar drop bar drop bar drop bar drop bar
Suspension Correction 0 mm 0 mm 0 mm 0 mm 0 mm
Top Tube Effective Length 512.7 527.4 548.5 568.9 584.2
Effective Top Tube Length (Est) 522.2401 537.5558 559.2493 580.2155 596.0817
Reach 376 383 391 398 405
Stack 510 539 568 596 625
Standover
Head Tube Angle 71.0 71.3 72.5 72.8 73.0
Seat Tube Angle 74.0 74.0 73.5 73.0 73.0
Chainstay Length 417 417 417 417 417
Front Center 580 595 594 607 620
Bottom Bracket Drop 80 80 78 78 78
Trail 66 64 63 62 60
Trail 45 67 65 64 62 61
UDH YES YES YES YES YES
Tire Width Max 700c 40 40 40 40 40
Tire Width Max 650b 0 0 0 0 0
Axle Spacing 142 (road) 142 (road) 142 (road) 142 (road) 142 (road)
Stealth Dropper NO/Unknown NO/Unknown NO/Unknown NO/Unknown NO/Unknown
Seatpost Diameter 27.2 27.2 27.2 27.2 27.2
Max Chainring 1x
Dropout fixed fixed fixed fixed fixed
Internal Storage
Frame Weight
Base Build USD $12999 $12999 $12999 $12999 $12999
Frameset USD $6499 $6499 $6499 $6499 $6499
Location Toronto, Ontario, Canada Toronto, Ontario, Canada Toronto, Ontario, Canada Toronto, Ontario, Canada Toronto, Ontario, Canada
