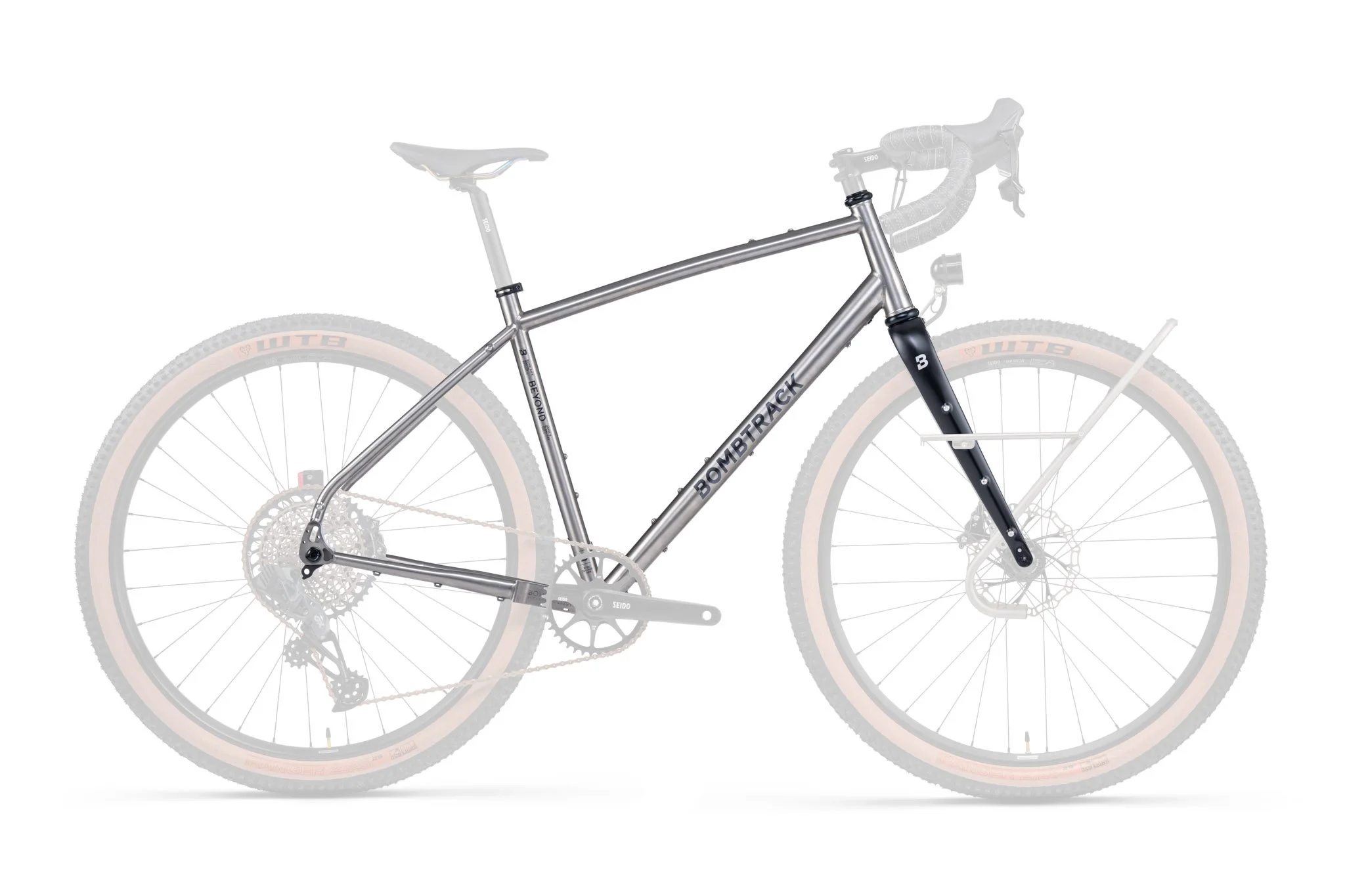

Bombtrack Beyond Ti 2025

Brand: Bombtrack
Model: Beyond Ti
Year: 2025
Category: Gravel
Similar bikes: Bombtrack Beyond Al 2025, Mosaic GT-X 2025, Kinesis Tripster AT Plus 2025, Curve Big Kev 2025, Soma Jawbone Type A 2025

Geometry & Specs

Frame Size	XS	S	M	L	XL
Estimated Rider Height	153cm - 163cm	163cm - 171cm	171cm - 180cm	180cm - 189cm	189cm - 199cm
Specified Rider Height	151cm - 160cm	160cm - 170cm	170cm - 180cm	180cm - 189cm	189cm - 199cm
Class	Gravel	Gravel	Gravel	Gravel	Gravel
Style	rowdy	rowdy	rowdy	rowdy	rowdy
Material	titanium	titanium	titanium	titanium	titanium
Fork	rigid	rigid	rigid	rigid	rigid
Handlebar	drop bar	drop bar	drop bar	drop bar	drop bar
Suspension Correction	0 mm	0 mm	0 mm	0 mm	0 mm
Top Tube Effective Length	518	546	567	598	626
Effective Top Tube Length (Est)	518.122	546.438	566.900	597.650	625.825
Reach	365	385	396	417	436
Stack	534	563	596	630	662
Standover	726	759	801	837	871
Head Tube Angle	70.0	70.0	70.5	70.5	70.5
Seat Tube Angle	74	74	74	74	74
Chainstay Length	420	420	445	445	445
Front Center	594	624	636	670	700
Bottom Bracket Drop	60	60	74	74	74
Trail	72	72	76	76	76
Trail 45	73	73	70	70	70
UDH	YES	YES	YES	YES	YES
Tire Width Max 700c	57	57	57	57	57
Tire Width Max 650b	2.25	2.25	2.25	2.25	2.25
Axle Spacing	142 (road)	142 (road)	142 (road)	142 (road)	142 (road)
Stealth Dropper	YES	YES	YES	YES	YES
Seatpost Diameter	27.2	27.2	27.2	27.2	27.2
Max Chainring 1x	44	44	44	44	44
Dropout	fixed	fixed	fixed	fixed	fixed
Internal Storage
Frame Weight			2030
Base Build USD
Frameset USD
Location	Cologne, Germany	Cologne, Germany	Cologne, Germany	Cologne, Germany	Cologne, Germany

Related

See where the Bombtrack Beyond Ti 2025 fits into The GravelVerse, a plot that compares overall similarity of frame geometry among gravel bikes.

Compare three other bikes to the Bombtrack Beyond Ti 2025 on key frame specs and frame geometry measures.

See how the geometry changes if you add a suspension fork to the Bombtrack Beyond Ti 2025.
