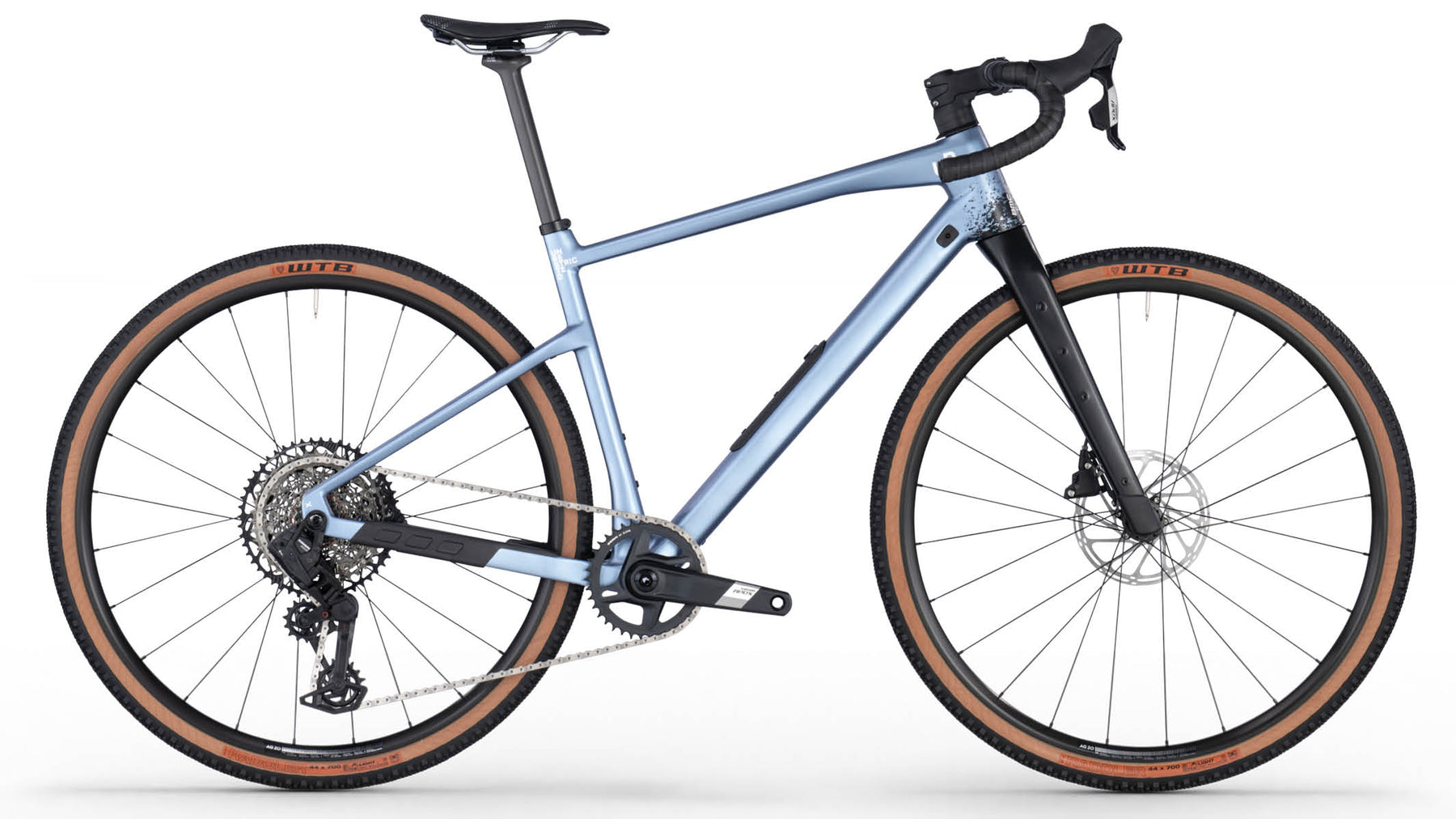

BMC URS 2024

Brand: BMC
Model: URS
Year: 2024
Category: Gravel
Similar bikes: BMC URS 01 2025, Merida Silex X00 2025, Merida Silex X000 2025, Santa Cruz Stigmata CC 2025, Mondraker Arid 2025

Geometry & Specs

Frame Size	XS	S	M	L	XL
Estimated Rider Height	159cm - 165cm	165cm - 171cm	171cm - 178cm	178cm - 188cm	188cm - 200cm
Specified Rider Height	160cm - 166cm	166cm - 169cm	169cm - 177cm	177cm - 188cm	188cm - 200cm
Class	Gravel	Gravel	Gravel	Gravel	Gravel
Style	rowdy	rowdy	rowdy	rowdy	rowdy
Material	carbon	carbon	carbon	carbon	carbon
Fork	rigid	rigid	rigid	rigid	rigid
Handlebar	drop bar	drop bar	drop bar	drop bar	drop bar
Suspension Correction	0 mm	0 mm	30 mm	30 mm	30 mm
Top Tube Effective Length	545	555	571	589	607
Effective Top Tube Length (Est)	545.3017	555.3017	570.8482	589.1680	607.4877
Reach	390	400	410	420	430
Stack	560	560	580	610	640
Standover	727	735	758	778	795
Head Tube Angle	69.0	69.0	69.5	69.5	69.5
Seat Tube Angle	74.5	74.5	74.5	74.5	74.5
Chainstay Length	430	430	430	430	430
Front Center	629	639	647	668	689
Bottom Bracket Drop	76	76	76	76	76
Trail	84	84	86	86	86
Trail 45	83	83	85	85	85
UDH	YES	YES	YES	YES	YES
Tire Width Max 700c	47	47	47	47	47
Tire Width Max 650b	0	0	0	0	0
Axle Spacing	142 (road)	142 (road)	142 (road)	142 (road)	142 (road)
Stealth Dropper	YES	YES	YES	YES	YES
Seatpost Diameter	27.2	27.2	27.2	27.2	27.2
Max Chainring 1x
Dropout	fixed	fixed	fixed	fixed	fixed
Internal Storage	yes	yes	yes	yes	yes
Frame Weight
Base Build USD	$3649	$3649	$3649	$3649	$3649
Frameset USD
Location	Grenchen, Switzerland	Grenchen, Switzerland	Grenchen, Switzerland	Grenchen, Switzerland	Grenchen, Switzerland

Related

See where the BMC URS 2024 fits into The GravelVerse, a plot that compares overall similarity of frame geometry among gravel bikes.

Compare three other bikes to the BMC URS 2024 on key frame specs and frame geometry measures.

See how the geometry changes if you add a suspension fork to the BMC URS 2024.
