| Frame Size | 46 | 49 | 52 | 54 | 56 | 58 | 60 | 62 |
| Estimated Rider Height | 155cm - 161cm | 161cm - 166cm | 166cm - 172cm | 172cm - 178cm | 178cm - 183cm | 183cm - 188cm | 188cm - 193cm | 193cm - 198cm |
| Specified Rider Height | 155cm - 160cm | 160cm - 168cm | 168cm - 173cm | 173cm - 178cm | 178cm - 183cm | 183cm - 188cm | 188cm - 193cm | 193cm - 198cm |
| Class | Gravel | Gravel | Gravel | Gravel | Gravel | Gravel | Gravel | Gravel |
| Style | racy | racy | racy | racy | racy | racy | racy | racy |
| Material | aluminum | aluminum | aluminum | aluminum | aluminum | aluminum | aluminum | aluminum |
| Fork | rigid | rigid | rigid | rigid | rigid | rigid | rigid | rigid |
| Handlebar | drop bar | drop bar | drop bar | drop bar | drop bar | drop bar | drop bar | drop bar |
| Suspension Correction | 0 mm | 0 mm | 0 mm | 0 mm | 0 mm | 0 mm | 0 mm | 0 mm |
| Top Tube Effective Length | 535 | 540 | 545 | 560 | 570 | 580 | 600 | 615 |
| Effective Top Tube Length (Est) | 535.3768 | 540.1500 | 545.0326 | 560.1437 | 570.4449 | 579.7461 | 599.4319 | 615.7637 |
| Reach | 392 | 394 | 395 | 401 | 407 | 412 | 422 | 433 |
| Stack | 517 | 527 | 541 | 555 | 570 | 585 | 599 | 617 |
| Standover | ||||||||
| Head Tube Angle | 71.00 | 71.00 | 71.00 | 71.25 | 71.25 | 71.50 | 71.50 | 71.50 |
| Seat Tube Angle | 74.5 | 74.5 | 74.5 | 74.0 | 74.0 | 74.0 | 73.5 | 73.5 |
| Chainstay Length | 427 | 427 | 427 | 427 | 410 | 427 | 427 | 427 |
| Front Center | 602 | 608 | 613 | 622 | 649 | 639 | 655 | 670 |
| Bottom Bracket Drop | 74 | 74 | 74 | 73 | 73 | 73 | 72 | 72 |
| Trail | 66 | 66 | 66 | 64 | 66 | 65 | 65 | 65 |
| Trail 45 | 64 | 64 | 64 | 63 | 65 | 63 | 63 | 63 |
| UDH | YES | YES | YES | YES | YES | YES | YES | YES |
| Tire Width Max 700c | 47 | 47 | 47 | 47 | 47 | 47 | 47 | 47 |
| Tire Width Max 650b | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Axle Spacing | 142 (road) | 142 (road) | 142 (road) | 142 (road) | 142 (road) | 142 (road) | 142 (road) | 142 (road) |
| Stealth Dropper | YES | YES | YES | YES | YES | YES | YES | YES |
| Seatpost Diameter | 31.6 | 31.6 | 31.6 | 31.6 | 31.6 | 31.6 | 31.6 | 31.6 |
| Max Chainring 1x | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 |
| Dropout | fixed | fixed | fixed | fixed | fixed | fixed | fixed | fixed |
| Internal Storage | ||||||||
| Frame Weight | 1690 | |||||||
| Base Build USD | $3299 | $3299 | $3299 | $3299 | $3299 | $3299 | $3299 | $3299 |
| Frameset USD | $1749 | $1749 | $1749 | $1749 | $1749 | $1749 | $1749 | $1749 |
| Location | Truckee, California, USA | Truckee, California, USA | Truckee, California, USA | Truckee, California, USA | Truckee, California, USA | Truckee, California, USA | Truckee, California, USA | Truckee, California, USA |

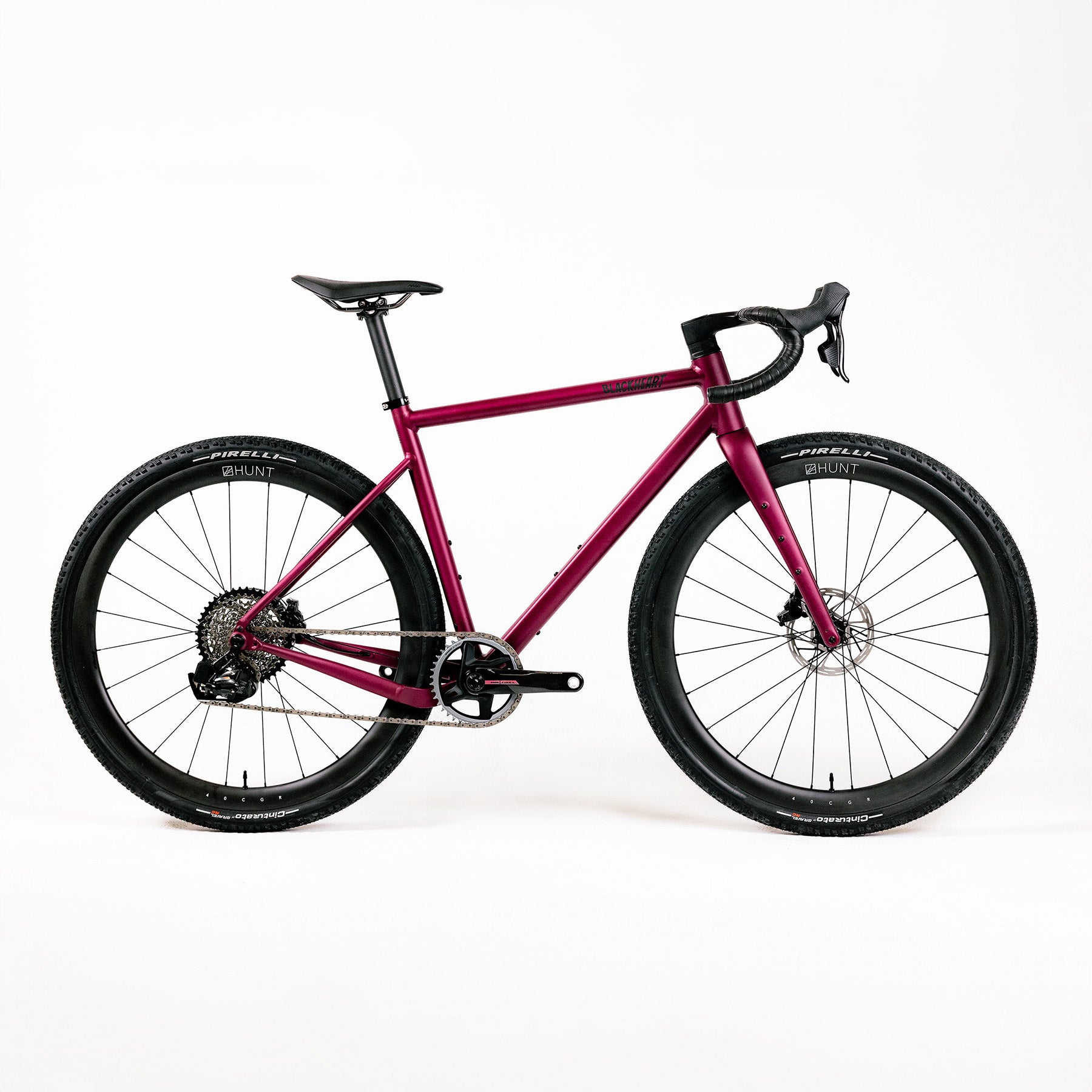

Blackheart Gravel AL 2024
Brand: Blackheart
Model: Gravel AL
Year: 2024
Category: Gravel
Similar bikes: Blackheart Gravel Ti 2025, Standert Kieswerk 2025, Specialized Crux 2025, Specialized Crux DSW 2025, Specialized S-Works Crux 2025
