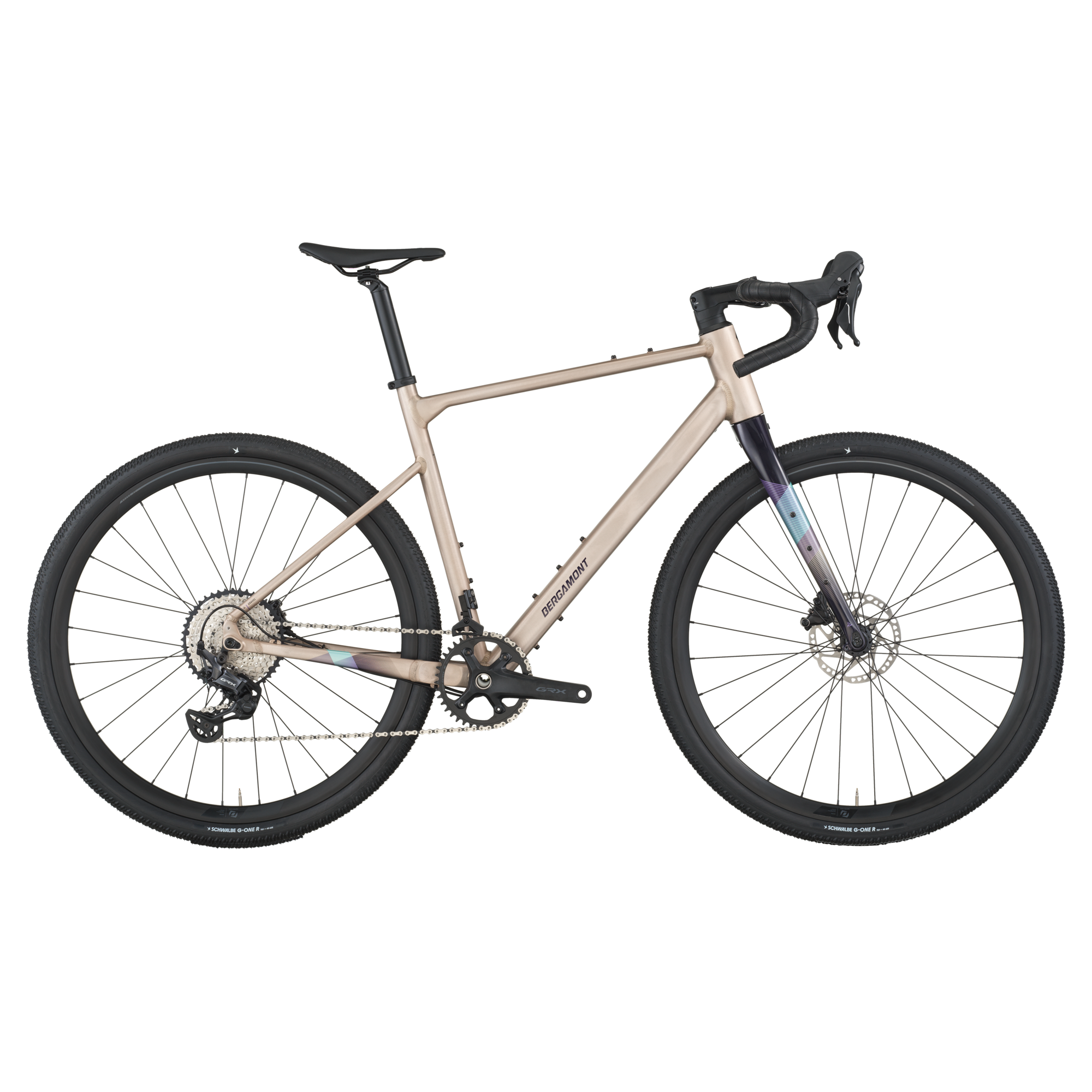

Bergamont Grandurance RD 2025

Brand: Bergamont
Model: Grandurance RD
Year: 2025
Category: Gravel
Similar bikes: Bergamont Grandurance 2025, Binary Groler (short) 2025, Merida Silex X00 2025, Merida Silex X000 2025, Bulls Mache-Ti 2025

Geometry & Specs

Frame Size	S	M	L	XL	XXL
Estimated Rider Height	154cm - 164cm	164cm - 173cm	173cm - 181cm	181cm - 189cm	189cm - 200cm
Specified Rider Height	155cm - 165cm	165cm - 174cm	174cm - 184cm	184cm - 192cm	192cm - 199cm
Class	Gravel	Gravel	Gravel	Gravel	Gravel
Style	rowdy	rowdy	rowdy	rowdy	rowdy
Material	aluminum	aluminum	aluminum	aluminum	aluminum
Fork	rigid	rigid	rigid	rigid	rigid
Handlebar	drop bar	drop bar	drop bar	drop bar	drop bar
Suspension Correction	30 mm	30 mm	30 mm	30 mm	30 mm
Top Tube Effective Length	530	545	560	575	590
Effective Top Tube Length (Est)	530.0515	545.1426	560.2336	575.3247	590.4157
Reach	380	390	400	410	420
Stack	560	579	598	617	636
Standover	776	798	820	841	930
Head Tube Angle	70	70	70	70	70
Seat Tube Angle	75	75	75	75	75
Chainstay Length	435	435	435	435	435
Front Center	612	629	646	662	679
Bottom Bracket Drop	70	70	70	70	70
Trail	76	76	76	76	76
Trail 45	76	76	76	76	76
UDH	NO/Unknown	NO/Unknown	NO/Unknown	NO/Unknown	NO/Unknown
Tire Width Max 700c	50	50	50	50	50
Tire Width Max 650b	0	0	0	0	0
Axle Spacing	142 (road)	142 (road)	142 (road)	142 (road)	142 (road)
Stealth Dropper	YES	YES	YES	YES	YES
Seatpost Diameter	31.6	31.6	31.6	31.6	31.6
Max Chainring 1x
Dropout	fixed	fixed	fixed	fixed	fixed
Internal Storage
Frame Weight
Base Build USD
Frameset USD
Location	Hamburg, Germany	Hamburg, Germany	Hamburg, Germany	Hamburg, Germany	Hamburg, Germany
