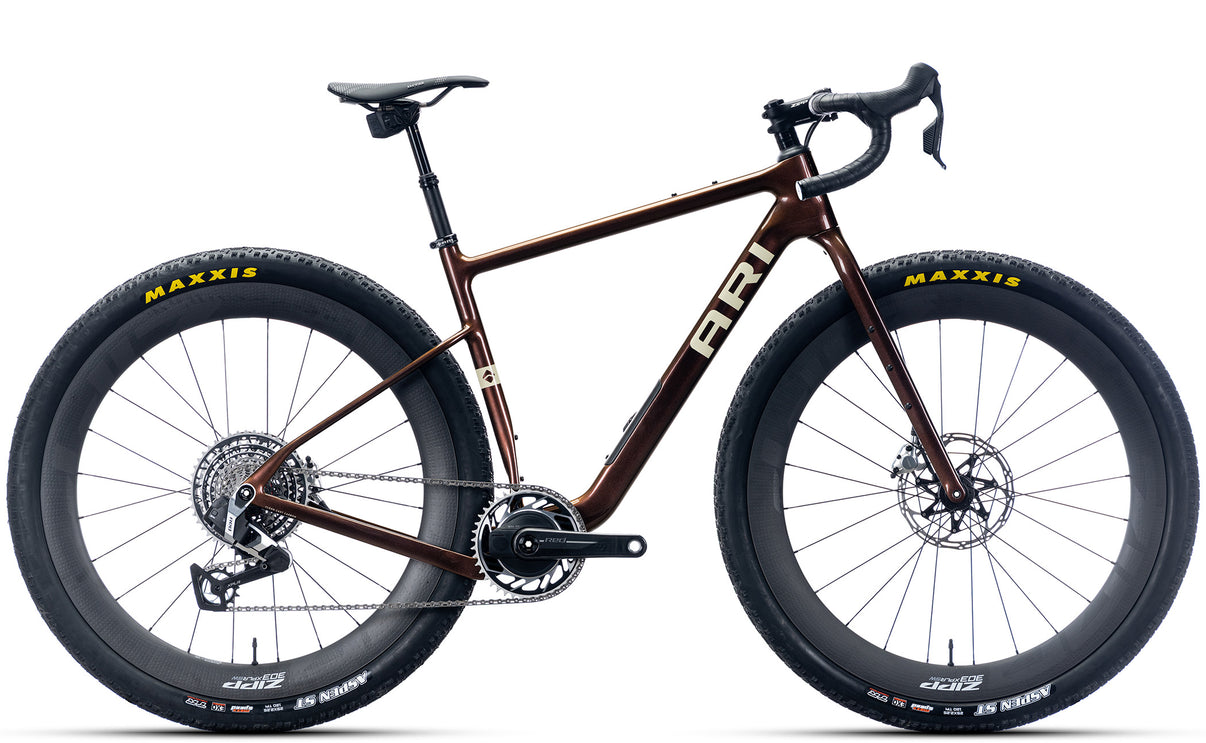

Ari Shafer 2026

Brand: Ari
Model: Shafer
Year: 2026
Category: Gravel
Similar bikes: Santa Cruz Stigmata CC 2025, Parlee Taos 2025, Norco Search A Gen 3 2025, Norco Search C gen 3 2025, Fustle Causeway G2 2025

Geometry & Specs

Frame Size	XS	S	M	L	XL
Estimated Rider Height	153cm - 161cm	161cm - 170cm	170cm - 179cm	179cm - 186cm	186cm - 194cm
Specified Rider Height
Class	Gravel	Gravel	Gravel	Gravel	Gravel
Style	rowdy	rowdy	rowdy	rowdy	rowdy
Material	carbon	carbon	carbon	carbon	carbon
Fork	rigid	rigid	rigid	rigid	rigid
Handlebar	drop bar	drop bar	drop bar	drop bar	drop bar
Suspension Correction	60 mm	60 mm	60 mm	60 mm	60 mm
Top Tube Effective Length	525	545	565	585	605
Effective Top Tube Length (Est)	525.7100	547.5774	567.7461	586.3484	605.0833
Reach	368	387	400	410	423
Stack	550	560	585	615	635
Standover	730	750	770	800	825
Head Tube Angle	69	69	69	69	69
Seat Tube Angle	74	74	74	74	74
Chainstay Length	425	428	431	435	440
Front Center	603	625	648	670	691
Bottom Bracket Drop	78	78	78	78	78
Trail	83	83	83	83	83
Trail 45	83	83	83	83	83
UDH	YES	YES	YES	YES	YES
Tire Width Max 700c	57	57	57	57	57
Tire Width Max 650b	0	0	0	0	0
Axle Spacing	142 (road)	142 (road)	142 (road)	142 (road)	142 (road)
Stealth Dropper	YES	YES	YES	YES	YES
Seatpost Diameter	27.2	27.2	27.2	27.2	27.2
Max Chainring 1x	52	52	52	52	52
Dropout	fixed	fixed	fixed	fixed	fixed
Internal Storage	yes	yes	yes	yes	yes
Frame Weight			928
Base Build USD	$2549	$2549	$2549	$2549	$2549
Frameset USD	$1999	$1999	$1999	$1999	$1999
Location	Lindon, Utah, USA	Lindon, Utah, USA	Lindon, Utah, USA	Lindon, Utah, USA	Lindon, Utah, USA
